PROCESSOR

Intel® Core™ i7-10870H Processor

(14nm, 2.2GHz upto 5.00GHz, 16MB Smart Cache, TDP: 45W)

CHIPSET

Mobile Intel® HM470 Express Chipset

DISPLAY

15.6"(39.62cm) FHD (1920x1080)

Matte IPS LED Backlit Display with 144Hz Refresh Rate & 72% NTSC, Close to 100% sRGB

MEMORY

Installed RAM : 2 x 8GB DDR4 3200MHz SODIMM RAM

Total RAM Slot : 2

Max. RAM Support : Expandable memory up to 32GB

GRAPHICS

Intel® UHD Graphics 630

NVIDIA® GeForce RTX™ 3060

- 6GB GDDR6 Video RAM

- Boost Clock 1425 MHz

- Maximum Graphics Power 105W

- Support PCIe Gen3

- Microsoft DirectX® 12 Compatible

- NVIDIA® PhysX®

- GeForce CUDA™ Technology

- Dynamic Boost 2.0

- Microsoft Hybrid Graphics Mode

- Support 4 Active Displays

- Support NVIDIA® Surround View via HDMI x1,miniDP x1 and TBT x 1

STORAGE

Installed Storage : 1 x 1TB M.2 2280 SSD, NVMe PCIe Gen 3x4 Interface with DRAM

Supported SSD Type : SATAIII/ PCIe Gen3x4 M.2 2280

Total Storage Slot : 2

Max. Storage Support : Up to 2TB

KEYBOARD AND POINTING DEVICE

Per-Key RGB Backlight keyboard with Numeric Pad

Built in Gamma Secure Touch pad with Microsoft PTP multi-gesture and scrolling function

AUDIO

2x2W Speakers

S/PDIF Digital Output

Built in Array Microphone

Sound Blaster™ Atlas

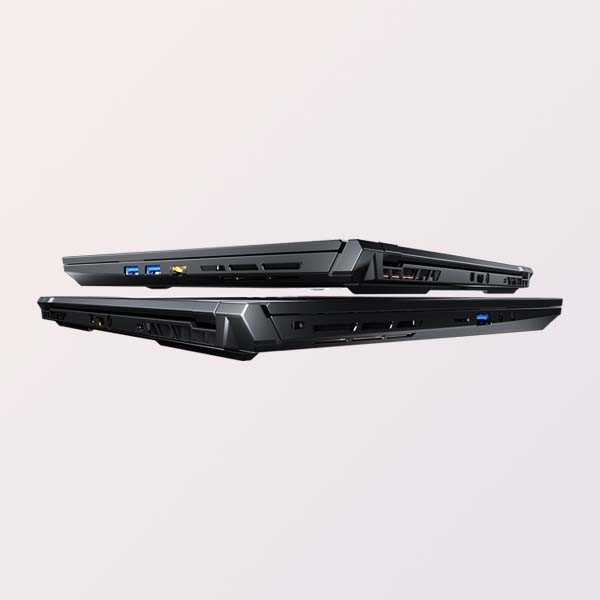

INTERFACE

3 x USB 3.2 Gen1 ports (Type A, 1 x powered USB port, AC/DC)

1 x Thunderbolt™ 3 port

1 x Mini Display port 1.4

1 x HDMI™ output port (with HDCP)

1 x 2-in-1 Audio Jack (Headphone / Microphone)

1 x 2-in-1 Audio jack (Microphone / S/PDIF optical)

1 x RJ-45 LAN port

1 x DC-in jack

CARD READER

MicroSD Push-Push Card reader up to UHS-ll

SLOTS

Three M.2 card slots

- 1st for WLAN Combo M.2 2230 Card with PCIe/USB/CNVi interface (E Key)

- 2nd for SSD M.2 2280 Card with SATA / PCIe Gen 3x4 interface (M Key)

- 3rd for SSD M.2 2280 Card with PCIe Gen3x4 interface (M key)

COMMUNICATION

Built in 10/100/1000Mb Base-TX Ethernet LAN

Intel® Dual Band Wi-Fi 6 AX201 2x2 AX + BT 5.2

CAMERA

1.0M HD video camera & 2D mic

POWER SUPPLY

Battery

Embedded 3 cells Polymer Battery Pack, 73WH

Battery life : 500 minutes (UMA mode with 73WH battery) (N.B: Based on testing with MobileMark 2014. Battery life may vary depending on applications and configuration)

Adapter

Full Range AC adapter, AC in 100~240V, 50~60Hz

DC output 19.5V, 9.23A, 180W

SECURITY

Kensington® Lock

Intel® PTT for system without Hardware TPM

Finger Print on Glass

CHASSIS

Full Metal Housing

OPERATING SYSTEM

Windows 10

WEIGHT & DIMENSION

Height: 19.8mm   |   Width: 357.5mm   |   Depth: 238mm   |   Weight: 1.99 kg

IN THE BOX

Laptop Charger

Device Drivers & Utilities

Users Manual

This Laptop Comes with two year of manufacturer warranty.

Note: This warranty does not cover any damage due to accident, electricity fault, natural causes, or negligence. And Authority keeps the power to change, expand, correct, stop or cancel the warranty period without any prior notice.
