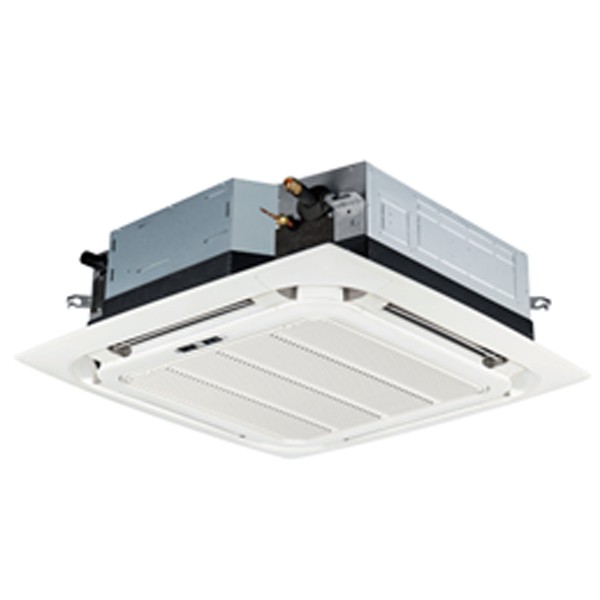

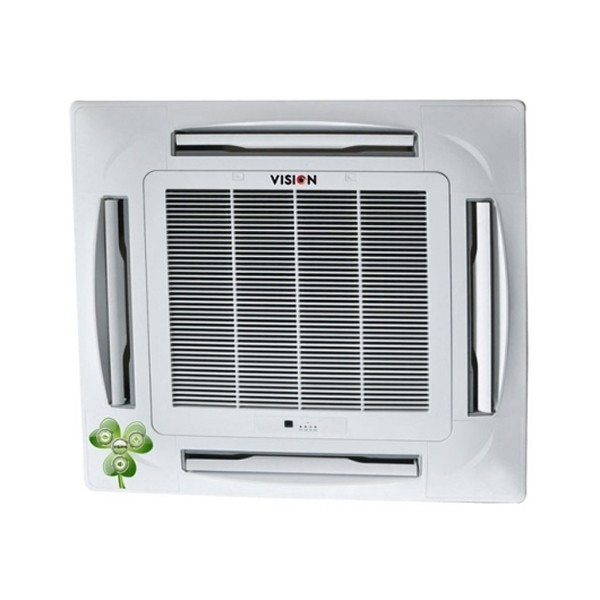

Vision AC 5.0 Ton Cassette Type (T60K) – Specifications

General Information

• Item Code: 823200

• Brand: VISION

• Model: VAC-5.0 TON

• Type: Cassette Air Conditioner

• Cooling Capacity: 5.0 Ton (60,000 BTU/hr)

• Refrigerant Type: R-410A

• Color: White

Electrical & Performance

• Power Supply: 3 Phase / 380–440V / 50 Hz

• Power Input: 6,000 W

• Current: 11 A

• Energy Efficiency Ratio (EER): 2.93 W/W

Compressor Details

• Compressor Brand: HIGHLY

• Compressor Type: Rotary

• Compressor Model: ATE650SC3Q9JK

Noise Levels

• Indoor Unit Noise: 45 / 42 / 39 dB(A)

• Outdoor Unit Noise: 60 dB(A)

Airflow & Comfort Features

• Auto Air Swing (Two-Way)

• 4-Way Air Direction Deflection

• Adjustable Cooling Fan Speeds (High, Medium, Low)

• Air Moisture Removal & Comfortable Dehumidification

• Energy Saving Mode

• Stable Cooling Temperature

• Fast Heat Exchanger for Quick Cooling

Dimensions

• Indoor Unit Size (W × H × D): 830 × 290 × 830 mm

• Outdoor Unit Size (W × H × D): 1250 × 940 × 340 mm

• Panel Size (W × H × D): 950 × 950 × 45 mm
