Vision AC 4.0 Ton Cassette Type (T480K) – Specifications

General Information

• Model: VAC 4 TON

• Item Code: 823171

• Type: Cassette Air Conditioner

• Cooling Capacity: 4.0 Ton (48,000 BTU/hr)

• Refrigerant Type: R-22 / R-410A

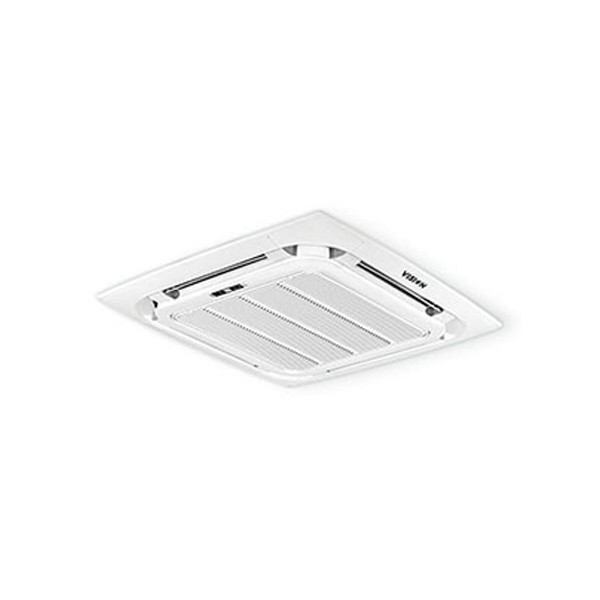

• Color: As shown in the picture

Electrical & Performance

• Power Supply: 3 Phase / 380–440V / 50 Hz

• Power Input: 5,013 W / 4,636 W

• Current: 10.21 A / 9.03 A

• Energy Efficiency Ratio (EER): 3.08 / 3.02 W/W

Compressor Details

• Compressor Brand: HITACHI / HIGHLY

• Compressor Type: Scroll / Rotary

• Compressor Model: 503DH-80C2 / ATE550SC3Q9RK

Noise Levels

• Indoor Unit Noise: 45 / 42 / 39 dB(A) (Low Noise)

• Outdoor Unit Noise: 60 dB(A)

Airflow & Comfort Features

• Auto Air Swing (Two-Way)

• 4-Way Air Direction Deflection

• Adjustable Cooling Fan Speeds (High, Medium, Low)

• Air Moisture Removal & Comfortable Dehumidification

• Energy Saving Mode

• Stable Cooling Temperature

• Fast Heat Exchanger for Quick Cooling

Dimensions

• Indoor Unit Size (W × H × D): 830 × 290 × 830 mm

• Outdoor Unit Size (W × H × D): 1250 × 940 × 340 mm

• Panel Size (W × H × D): 950 × 950 × 45 mm
