Split Air Conditioner – Full Technical Specifications

General Information

• Type of AC: Split

• Mode: Cool Only

• Fixed Speed: Yes

• Cooling Capacity: 24,000 BTU/hr (7,034 W at rated condition)

• Cooling Area Coverage: 220 – 240 sq.ft

• SEER/EER/COP: 3.08 kWh/kWh

• Power Supply: 230 V, 50 Hz

• Running Voltage Range: 187 – 264 V

• Operating Conditions:

  • Indoor Unit (IDU): 16 – 31°C

  • Outdoor Unit (ODU): 20 – 43°C

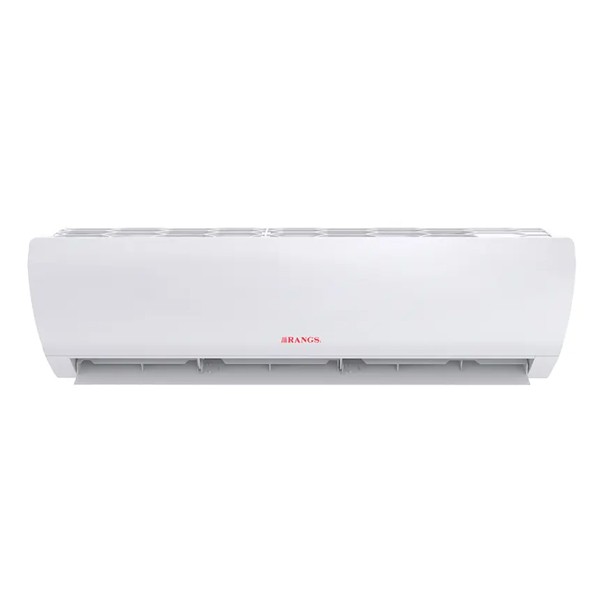

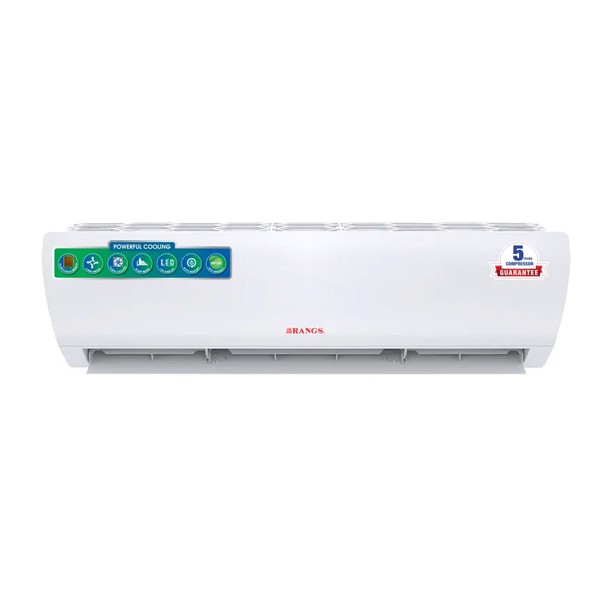

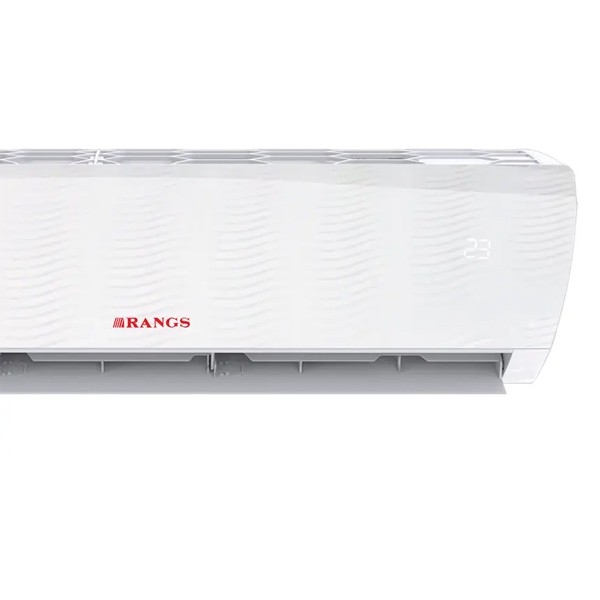

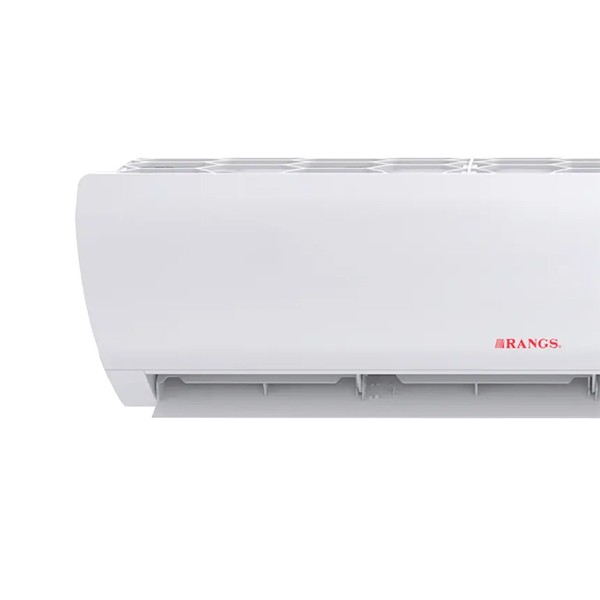

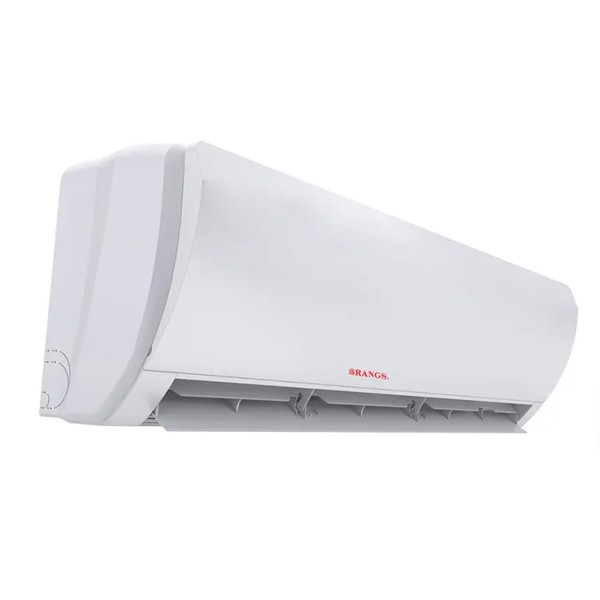

Indoor Unit (IDU)

• Dimensions (L × W × H): 1,097 × 329 × 258 mm

• Packing Dimensions: 1,180 × 410 × 315 mm

• Weight (Net / Gross): 17 ± 0.5 / 19 ± 0.5 kg

• Airflow (Max): 1,150 m³/h

• Noise Level (Max): 51 dB(A)

Motor

• Type: Single Phase Induction (PG)

• Mechanical Output: 45 W

• Capacitor: 3 µF

• Indoor Fan Speed (Turbo): 1,250 r/min

• Thermal Protector: Yes

Fan

• Dimensions (Dia × Length): Φ108 × 840 ± 1 mm

• Blade Material: SAN 30% GF

Evaporator Coil

• Rows × Tubes: 1 × 17

• Tube Pitch (a × b): 21 × 12.7 mm

• Coil Length: 895 mm

• Tube Specification: OD Φ7.0 × 0.25 × 0.18 mm

• Tube Material & Grade: DHP Copper, C12200

• Fin Spacing: 1.2 mm

• Fin Type & Material: Golden-coated Aluminum

Controls

• Control Board: SMPS Base

• PU/Protective Layer: PU

• EMI/EMC Compatible: Yes

• Display PCB: LED

• Swing Motors: 2 (Left/Right, Up/Down)

• Temperature Sensors: 2 (Air inlet, Evaporator inlet)

• Wi-Fi Connectivity: No

Other Features

• Filter Type: Regular

• Power Cord & Plug: Yes

• Connecting Wire (IDU to ODU): 16.4 ft

• Connecting Tube with Insulation (CU): 12 ft

Outdoor Unit (ODU)

• Noise Level (Hi/Mi/Lo): 59 / 58 dB(A)

• Dimensions (L × W × H, including foot & service valve): 855 × 370 × 685 mm

• Packing Dimensions: 935 × 435 × 750 mm

• Weight (Net / Gross): 46 ± 1 / 52 ± 1 kg

Compressor

• Preferred Model: Lamda-QXA-F265F050

• Type: Fixed Speed

• Locked Rotor Amp (LRA): 49.5 A

• Thermal Protector: Yes

• Overload Protector: Internal

• Capacitor: 50 µF

Outdoor Fan Motor

• Motor Type: Single Phase Induction

• Mechanical Output: 55 W

• Capacitor: 4 µF

• Fan Speed: 850 r/min

• Thermal Protector: Yes

Fan

• Dimensions (Dia × Height): Φ420 × 133 mm

• Number of Blades: 4

• Blade Material: ABS 20% GF

Condenser Coil

• Rows × Tubes: 2 × 15

• Tube Pitch (a × b): 21 × 12.7 mm

• Coil Length: 800 / 775 mm

• Tube Spec: OD Φ7.0 × 0.25 × 0.18 mm

• Tube Material & Grade: DHP Copper, C12200

• Fin Spacing: 1.2 mm

• Fin Type & Material: Bare Aluminum

Expansion Device

• Type: Capillary

• Length: 550 mm

• Tube Diameter (ID × OD): ID Φ1.8 × OD Φ3.0 mm

• Material: Copper

Refrigerant

• Type: R-410A

• Quantity: 1,480 g
