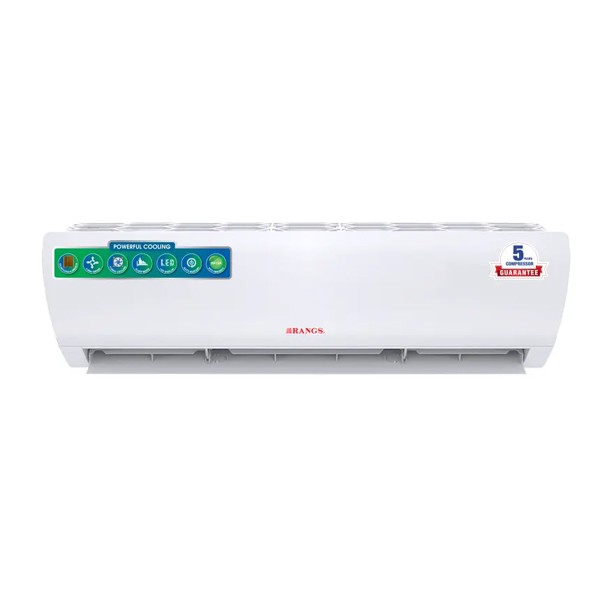

PARAMETER                                                              SRAC-19SH

About MODEL:

Type of AC:                                                                 Split

Fixed Speed / Inverter                                                Fixed Speed

Cool only/ Heat & cool                                                Cool only

Product selling                                                            Bangladesh

Capacity:

Cooling capacity                                                         5275 Watt

Heating capacity                                                         N/A

Operating Conditions:

Power supply

Rated Voltage & phase                                               230V & Single

Rated frequency                                                         50Hz

Running Condition

Withstanding Operating conditions                             20-43°C

Cooling Area                                                               160-180 sq.ft

Lowest running voltage                                               170 Volts

Highest running voltage                                              264 Volts

Cooling

Capacity at rated condition (If required)                     5275 Watt

Power consumption in rated condition                       1870 Watt

Performance:

Cooling data

SEER/EER/COP (If any special requirement)            2.82 W/W

Cooling Input Current                                                 8.85 A

Max. Input Current                                                      14.39 A

Indoor Unit Information:

General

Indoor side air flow (High)                                          900 m3/h

Indoor side noise level (High)                                     47 dB(A)

Dimensions (L*W*H)                                                   947x321x232 mm

Packing (L*W*H)                                                         1025 x 400 x 300 mm

Weight: Net & Gross                                                   12.5±0.5 Kg & 15±0.5 Kg

Motor

Motor Type: Single Phase Induction                           Induction (PG)

Motors Mechanical output Wattage                            35 Watt

Capacitor                                                                     2 uF

Indoor Fan speed (Turbo/High/Medium/Low)             1200/1150/1100/1000 r/min

Thermal protector                                                        Yes

Fan

Dimensions (Dia* Length)                                          Φ108, L- 700±1

Material of Blades                                                       SAN 30% GF

Evaporator

Rows * Tubes                                                              2*18 No's

Tube pitch (a) x row pitch (b)                                      21 x 12.7 mm

Hairpin copper tube length                                         749 mm

Tube specification                                                       ODΦ7.0 x 0.25+0.18 IGT

Tube Material & Grade                                               DHP COPPER, C12200

Fin spacing                                                                 1.2 mm

Fin type                                                                       Louvered

Fin Material (Bare or Golden/Blue/Silver Coa            Aluminum (Hydrophilic Golden coated)

Control board

Transformer Base/ SMPS Base                                 SMPS

PU/ Protective layer                                                    PU

EMI/EMC compatible                                                  NO

Display PCB                                                               LED Digit Display

Swing Motors: Qty, Purpose                                       2, Left/right, Up/Down

Temperature sensor: Nos & Locations                       2, air inlet, Eva inlet

Other

Filter Type                                                                   Mesh Filter

Power cord & Plug                                                      yes, 1.5 meter

Connecting wire between IDU & ODU: Length          3.5 meter

Connecting tube (CU with insulation) between          3±0.05 meter

Outdoor:

General

Outdoor side noise level (Turbo/High)                        55.12-High

Dimension: L*W*H (Including foot & service)             844 x 310 x 546mm

Packing: L*W*H900 x 372 x 610 mm

Weight: Net & Gross                                                   35±1 Kg & 39.5±1 Kg

Max. discharge/Suction pressure                               4.15/1.15 MPa

Compressor

Preferred Model                                                          ASL201GV-C7EU(Highly)

Type: Fixed speed / Inverter                                       Fixed Speed

Inverter Frequency Range: Min to Max                      N/A

Locked rotor Amp (LRA)                                             50.0 A at 240 V

Thermal protector                                                       Yes

Overload Protector (Location)                                    internal

Capacitor (If applicable)                                              60 uF

Fan motor

Motor Type: Single Phase Induction                           Induction

Motors Mechanical output Wattage                            35 Watt

Capacitor                                                                     3 μF

Outdoor Fan speed                                                     850 R/min

Thermal protector                                                       Yes

Unit Information:

Fan

Dimensions (Dia* Hight)                                             Φ400, H-115

Number of Blades                                                       3 No's

Material of Blades                                                       ABS 20%GF

Condenser

Rows*Tubes                                                                2*24 No's

Tube pitch(a)x row pitch(b)                                         21 x 12.7 mm

Coil length                                                                   810 OR; 775 IR

Tube outside & Inside diameter                                  ODΦ7.0 x 0.25+0.18 IGT

Tube Material & Grade                                               DHP COPPER, C12200

Fin Type                                                                      Slit

Fin spacing                                                                 1.2 mm

Fin Material                                                                 Aluminum (Hydrophilic Golden coated)

Expansion Device

Capillary/EEV                                                              Capillary

Material (IF capillary)                                                  Copper Tube

PCB

PCB Protection: PU/ Protective layer                         NA

PFC: Active/passive                                                    NA

Temperature sensor Nos & Locations                        NA

Other

Gas/ Refrigerant Type                                                R-410a

Gas/ Refrigerant Qty                                                   1.15 KG

Remote:

Yes/No                                                                         Yes

RF / IR Based                                                             IR

Frequency                                                                   16 MHz

Operating Range                                                        8 Meter

Display                                                                        LCD

Packaging:

Number of Ply: 3/5/7/Other                                         5 Ply

GSM                                                                            Indoor: 908±10, Outdoor: 936 ±10

BS (Bursting Strength)                                                160-180 psi

EPS (Thermocol) Locations: Bottom, Side, Top, other (Pls Specify) IDU: Two Sides

& ODU: Bottom & Top
