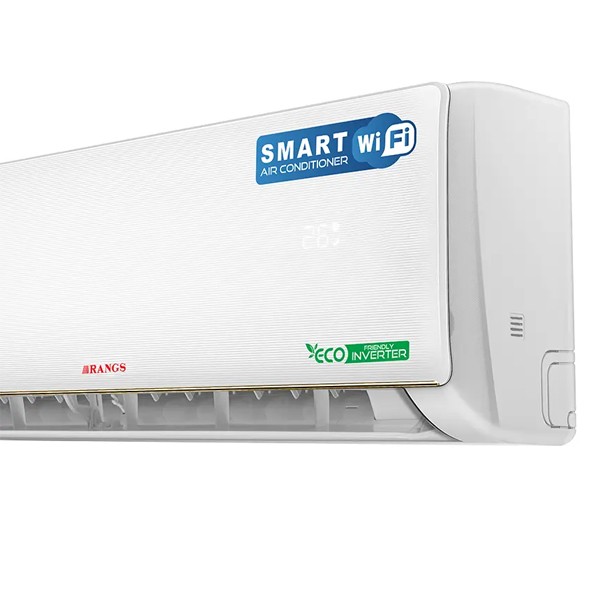

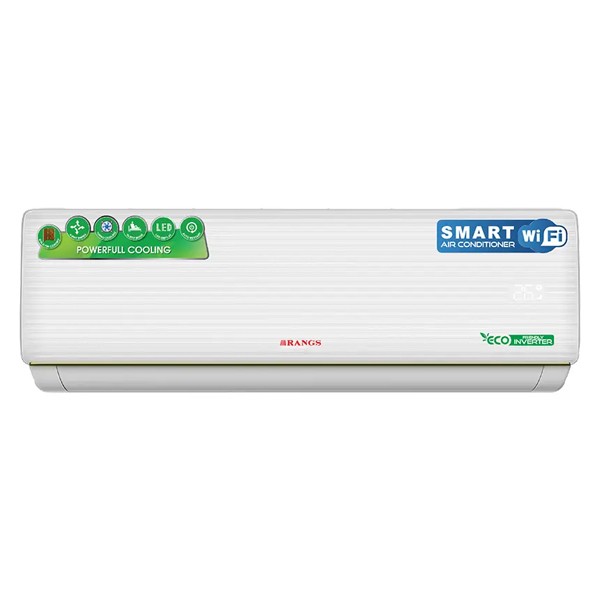

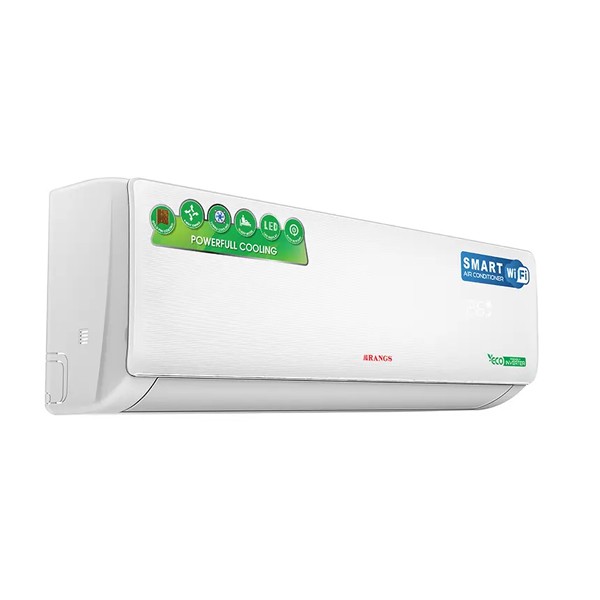

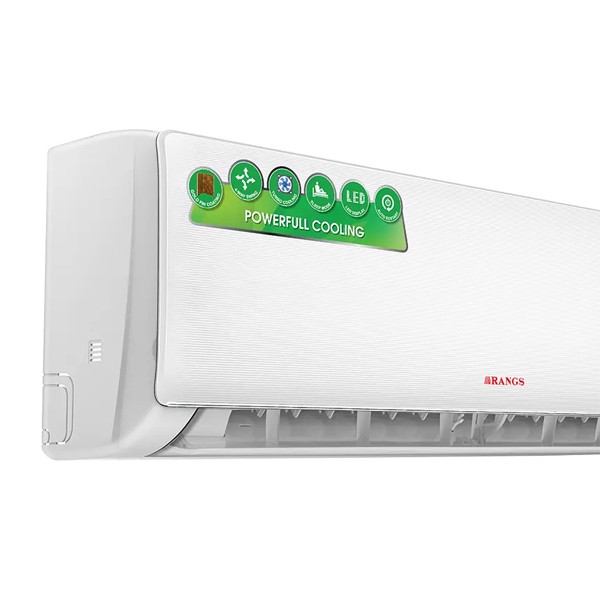

Model Name                                                   RSDC-24RTSI

Type                                                                Cooling only

Control type                                                    Remote

Power supply                                                  208-230V~/50Hz/1P

Voltage Range                                                165~265 V

Cooling:

Capacity                                                          24000(4090~24900) Btu/h

Capacity                                                          7035(1200~7300) W

Rated power Input                                          2314(300~2800) W

Rated current                                                  10.7(2.5~13.5) A

EER                                                                 3.04 W/W

Max power Input                                             2800 W

Max current                                                     13.5 A

Indoor coil:

a. Number of rows                                          2

b. Tube pitch(a)x row pitch(b)                         21×12.7 mm

c. Fin spacing                                                 1.4 mm

e. Tube outside dia and type                          Φ7 mm, innergroove tube

f. Coil length x height x width

g. Number of circuits                                       4 in 4 out

Outdoor coil:

a. Number of rows                                          2

b. Tube pitch(a)x row pitch(b)                        19.5×11.6 mm

c. Fin spacing                                                 1.2 mm

e. Tube outside dia and type                          Φ5 mm, innergroove tube

f. Coil length x height x width

g. Number of circuits                                       3 in 3 out

Indoor unit:

Dimension(W*D*H)                                         1010×315×220 mm

Packing (W*D*H)                                            1096×390×297 mm

Net/Gross weight                                            13/16 Kg

Outdoor unit:

Dimension(W*D*H)                                         853×349×602 mm

Packing (W*D*H)                                            890×385×628 mm

Net/Gross weight                                            30/35 Kg

Pressure:

High (DP)                                                        4.5 MPa

Low (SP)                                                         1.9 MPa

Refrigerant                                                      R410A/990g

Ambient temperature                                      -15~50℃

Suitable area                                                   30~50 m2

Connecting Wiring:

Size x Core number                                        4×0.75mm2

Power supply cord                                          3×1.5mm²

Qty 40'HQ                                                       196
