RSDC-18RTSI Air Conditioner – Specifications & Features

General Information

• Model Name: RSDC-18RTSI

• Type: Split Air Conditioner

• Cooling Mode: Cooling Only

• Control Type: Remote Control

• Power Supply: Single Phase, 220–240 V~, 50 Hz

• Voltage Range: 165 – 265 V

Cooling Performance

• Cooling Capacity: 18,000 Btu/h (Range: 3,412 – 19,107 Btu/h)

• Cooling Capacity (W): 5,275 W (Range: 1,000 – 5,600 W)

• Rated Power Input: 1,735 W (Range: 300 – 2,000 W)

• Rated Current: 8.0 A (Range: 1.4 – 10 A)

• Energy Efficiency Ratio (EER): 3.04 W/W

• Maximum Power Input: 2,000 W

• Maximum Current: 10.0 A

Indoor Coil Specifications

• Number of Rows: 2

• Tube Pitch (a × b): 21 × 12.7 mm

• Fin Spacing: 1.4 mm

• Tube Diameter & Type: Φ7 mm, Inner Groove

• Number of Circuits: 3 in / 3 out

Outdoor Coil Specifications

• Number of Rows: 1

• Tube Pitch (a × b): 21 × 18.2 mm

• Fin Spacing: 1.3 mm

• Tube Diameter & Type: Φ7 mm, Inner Groove

• Number of Circuits: 1 in / 1 out

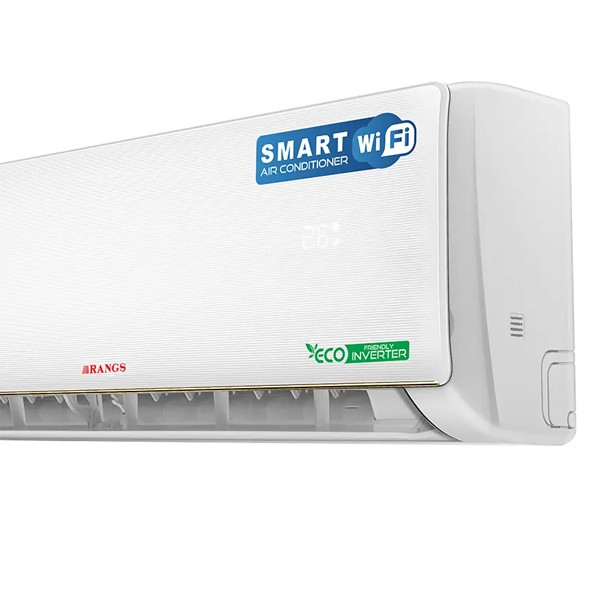

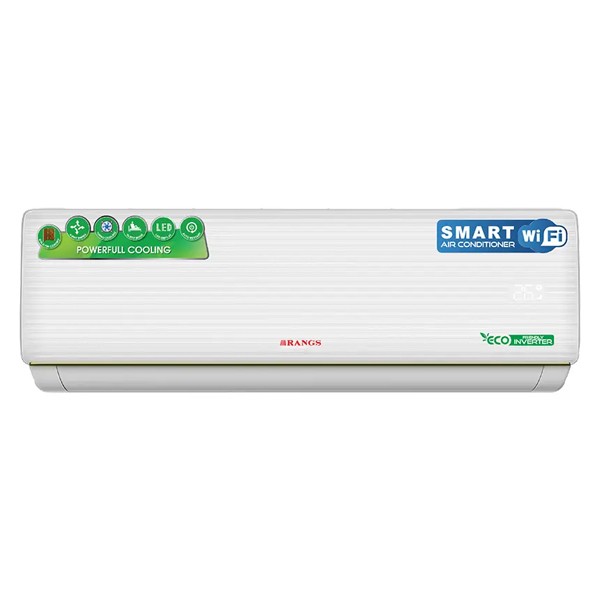

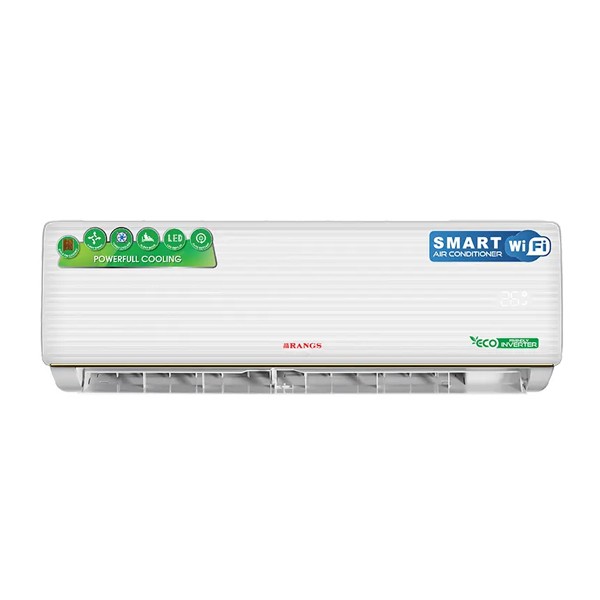

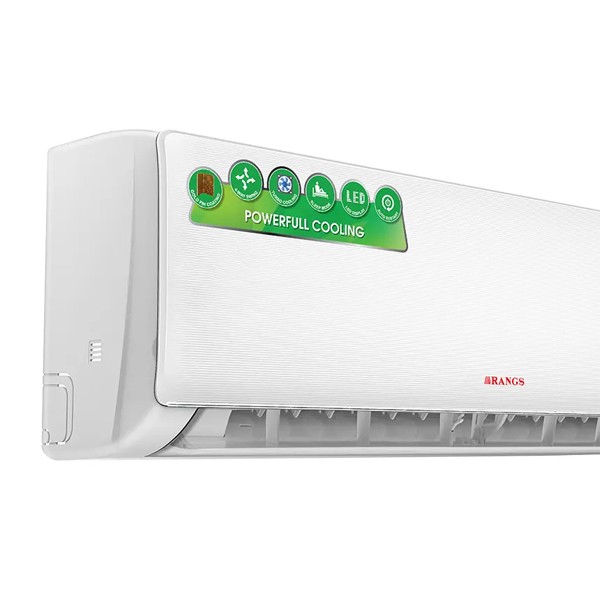

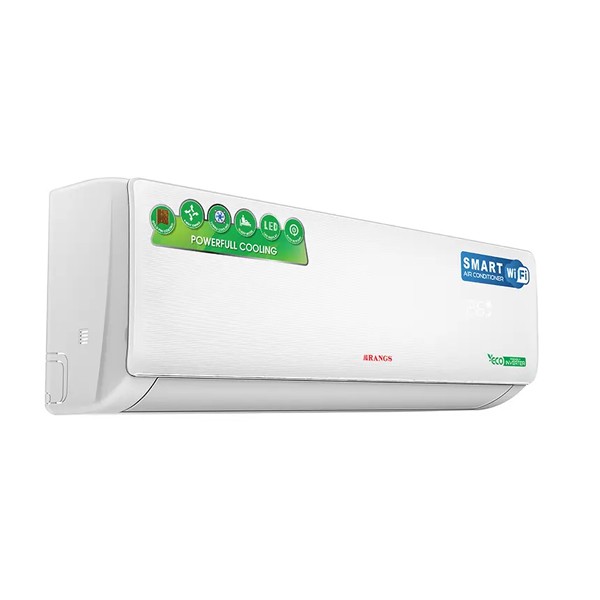

Indoor Unit

• Dimensions (W × D × H): 910 × 294 × 206 mm

• Packing Dimensions (W × D × H): 979 × 372 × 292 mm

• Weight (Net / Gross): 9 / 12 kg

Outdoor Unit

• Dimensions (W × D × H): 795 × 305 × 549 mm

• Packing Dimensions (W × D × H): 818 × 325 × 520 mm

• Weight (Net / Gross, with Pipe): 25 / 30 kg

Pressure Ratings

• High Pressure (Discharge): 4.5 MPa

• Low Pressure (Suction): 1.9 MPa

Refrigerant

• Type: R410A

• Quantity: 0.78 kg

Operating Conditions

• Ambient Temperature: 18 – 50℃

• Suitable Area: 20 – 35 m²

Connecting Wiring

• Wire Size & Core Number: 4 × 1.5 mm²

• Power Supply Cord: 1.5 mm²

Shipping Information

• Qty per 40'HQ Container: 232 Units
