TECHNICAL SPECIFICATIONS

Performance

• Cooling Capacity: 14,000 W

• Heating Capacity: 14,800 W

• Rated Input Power (Cooling): 4,650 W

• Rated Input Power (Heating): 4,853 W

• Air Circulation: 2,000 m³/h

• Energy Efficiency Ratio (EER – Cooling): 3.01 W/W

• Coefficient of Performance (COP – Heating): 3.05 W/W

• Energy Efficiency Class: B

Electrical Data

• Power Supply: 220–240 V ~ / 1 Phase / 50 Hz

• Rated Current (Cooling): 8.9 A

• Rated Current (Heating): 9.3 A

Noise Level

• Indoor Unit Noise Level (High / Medium / Low): 50 / 45 / 40 dB(A)

Compressor & Refrigeration System

• Compressor Type: Rotary

• Compressor Model: ATH420UC-C9EU

• Compressor Manufacturer: Highly

• Expansion Device: Capillary Tube

Heat Exchangers

• Evaporator: Copper Tube with Aluminum Fin

• Condenser: Copper Tube with Aluminum Fin

Physical Specifications

• Panel Dimensions (W × H × D): 950 × 37 × 950 mm

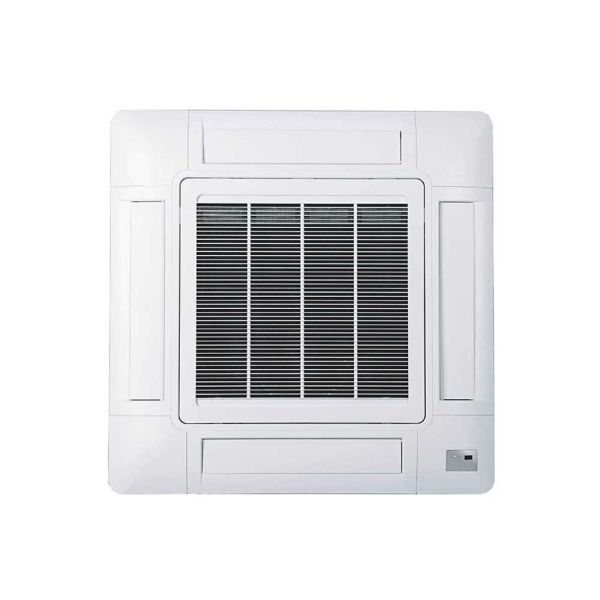

• Indoor Unit Dimensions (W × H × D): 840 × 298 × 840 mm

• Panel Net Weight: 6 kg

• Indoor Unit Net Weight: 33 kg
