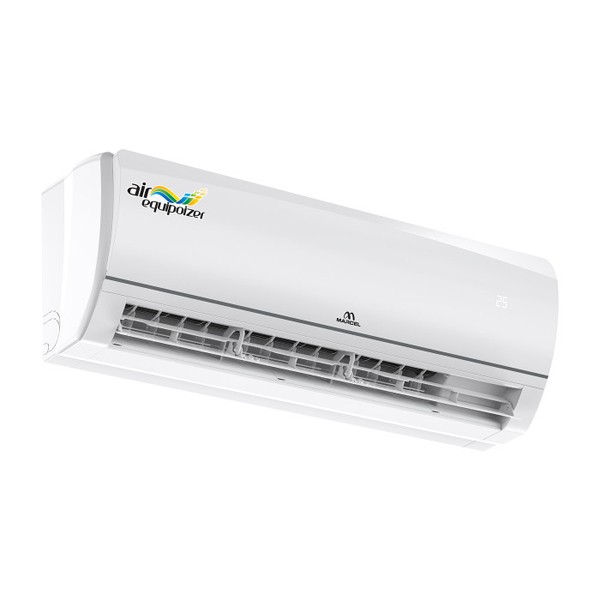

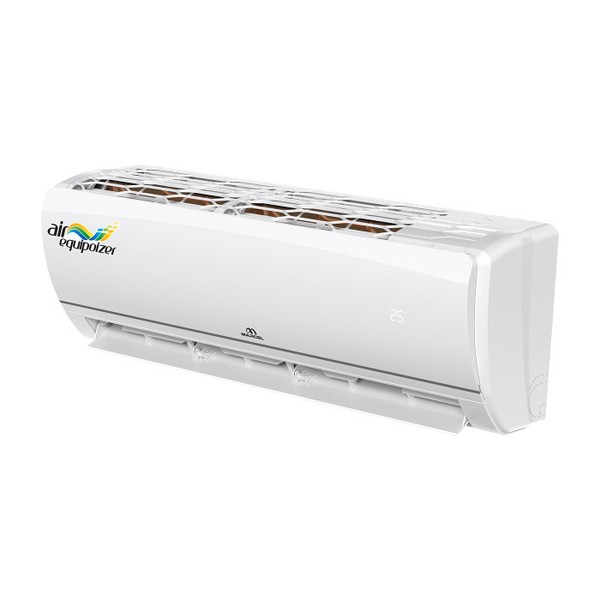

18,000 BTU Split Air Conditioner – Specifications

Basic Features

• Function: Cooling

• Cooling Capacity: 18,000 BTU/hr (5,275 W)

• Rated Voltage: 230 V ~ 50 Hz

• Rated Input Power: 1,850 W

• Rated Current: 8.45 A

• Energy Efficiency Ratio (EER): 2.85

Cooling System

• Compressor Type: Rotary (Fixed Speed)

• Refrigerant Type: R-410a

• Refrigerant Amount: 0.97 kg

• Operating Temperature Range: 20°C to 43°C

• Evaporator Fin Type: Louvered Fin

• Condenser Type: Copper Tube Condenser

• Condenser Fin Type: Slit Fin

• Maximum Pipe Length: 12 ft

Operations & Modes

• Turbo Mode (Maximum Cooling): Yes

• Eco Mode (Power Saving): No

• Dry Mode: Yes

• Fan Mode: Yes

• Auto Operation: Yes

• Auto Restart: Yes

• Comfort Cooling: Yes

• Fan Speed Settings: Auto / High / Medium / Low

• Timer: Yes

• Sleep Mode: Yes

Airflow

• Auto Up–Down Swing: Yes

• Auto Left–Right Swing: Yes

Remote Control

• Display Type: LCD

• Operation / Control: Infrared (IR)

• Child Lock: Yes

• Temperature Unit Change: Yes (16°C to 31°C)

Dimensions (L × W × H)

• Indoor Unit: 947 × 321 × 245 mm

• Indoor Packing: 1,025 × 400 × 300 mm

• Outdoor Unit: 865 × 370 × 687 mm

• Outdoor Packing: 935 × 435 × 750 mm

Weight

• Indoor Unit: Net 12.5 ± 0.5 kg | Gross 15 ± 0.5 kg

• Outdoor Unit: Net 35 ± 1 kg | Gross 38 ± 1 kg
