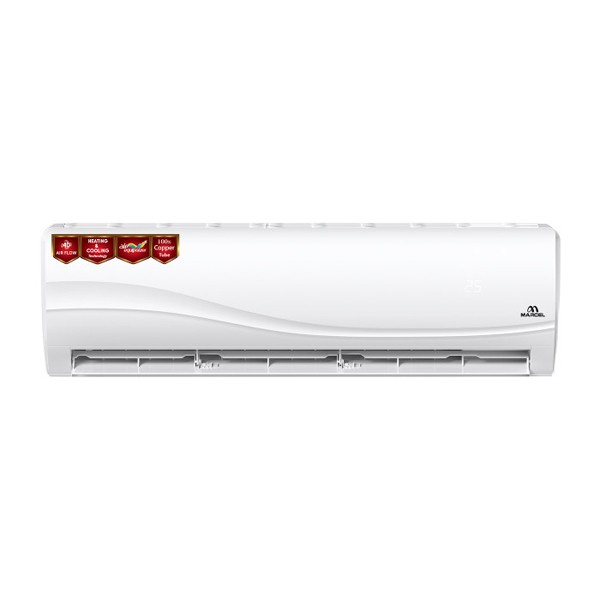

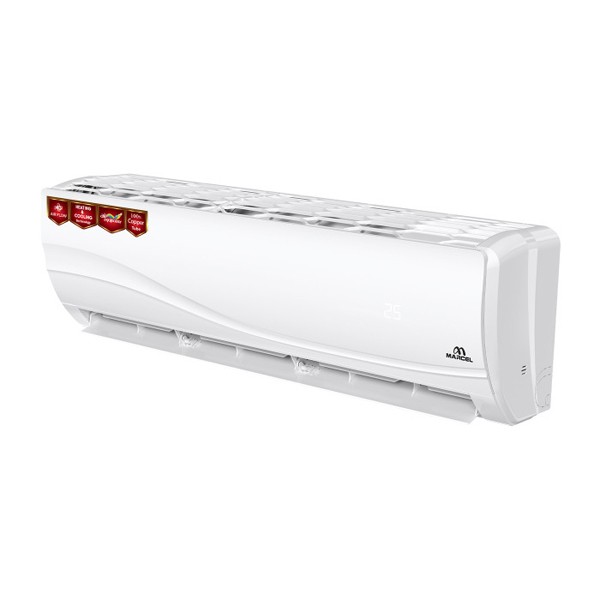

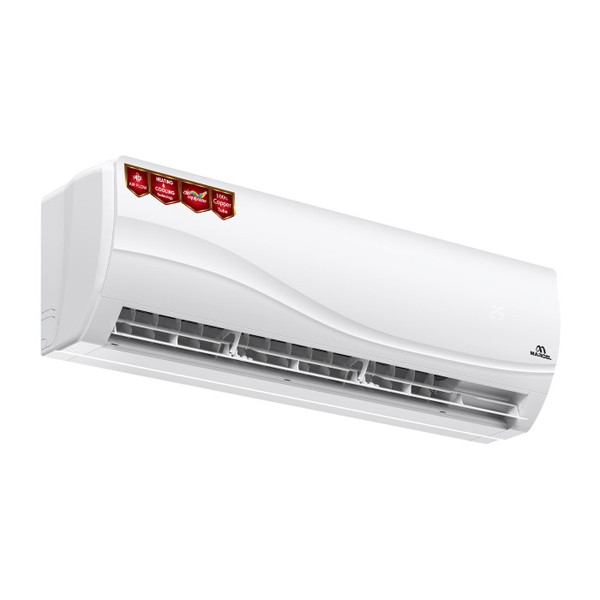

24,000 BTU Heating & Cooling Split Air Conditioner – Technical Specifications

Basic Features

• Function: Heating & Cooling

• Cooling Capacity: 24,000 BTU/hr

• Rated Voltage: 230 V ~ 50 Hz

Cooling Performance

• Rated Current: 10.85 A

• Rated Capacity: 6,700 W

• Rated Input Power: 2,361 W

• Energy Efficiency Ratio (EER): 2.83 W/W

• Operating Temperature Range: 20°C to 43°C

Heating Performance

• Rated Current: 9.82 A

• Rated Capacity: 6,700 W

• Rated Input Power: 2,095 W

• Coefficient of Performance (COP): 3.19 W/W

• Operating Temperature Range: –7°C to 24°C

Cooling & Heating System

• Compressor Type: Rotary (Fixed Speed)

• Refrigerant Type: R-410A

• Refrigerant Charge: 1.57 kg

• Indoor Heat Exchanger Fin Type: Louvered Fin

• Indoor Heat Exchanger Tube Type: Copper Tube

• Outdoor Heat Exchanger Tube Type: Slit Fin

• Maximum Refrigerant Pipe Length: 15 m

Operations & Modes

• Turbo Mode (Maximum Cooling): Yes

• Eco Mode (Power Saving): No

• Dry Mode: Yes

• Fan Mode: Yes

• Auto Operation: Yes

• Auto Restart: Yes

• Comfort Cooling: Yes

• Fan Speed Settings: Auto / High / Medium / Low

• Timer: Yes

• Sleep Mode: Yes

Airflow

• Auto Up–Down Swing: Yes

• Auto Left–Right Swing: Yes

Remote Control

• Display Type: LCD

• Control Method: Infrared (IR)

• Child Lock: Yes

• Temperature Unit Change: Yes (16°C to 31°C)

Dimensions (L × W × H)

Indoor Unit:

• Unit Size: 1,097 × 329 × 239 mm

• Packing Size: 1,180 × 410 × 315 mm

Outdoor Unit:

• Unit Size: 865 × 370 × 687 mm

• Packing Size: 935 × 435 × 750 mm

Weight

Indoor Unit:

• Net Weight: 16 ± 0.5 kg

• Gross Weight: 19 ± 0.5 kg

Outdoor Unit:

• Net Weight: 48 ± 1 kg

• Gross Weight: 54 ± 1 kg
