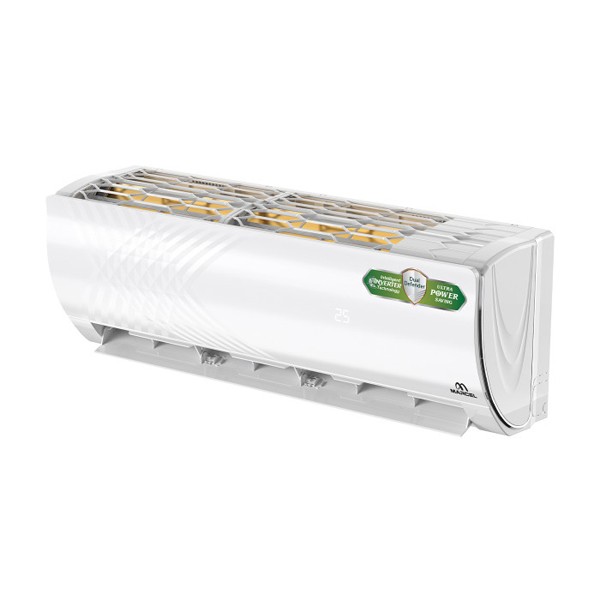

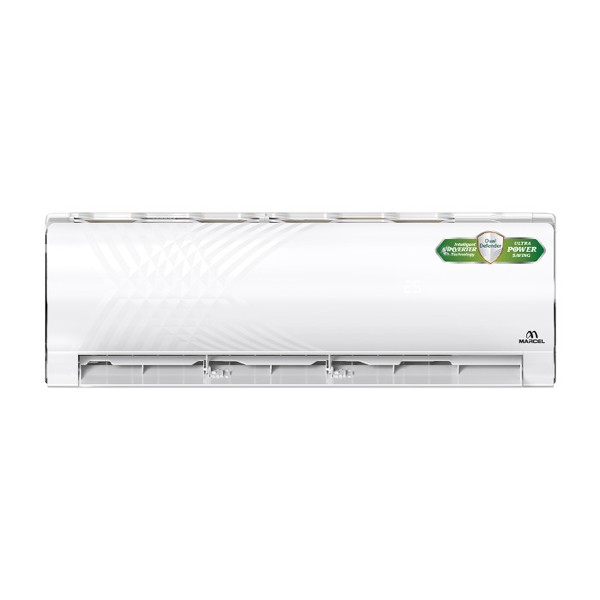

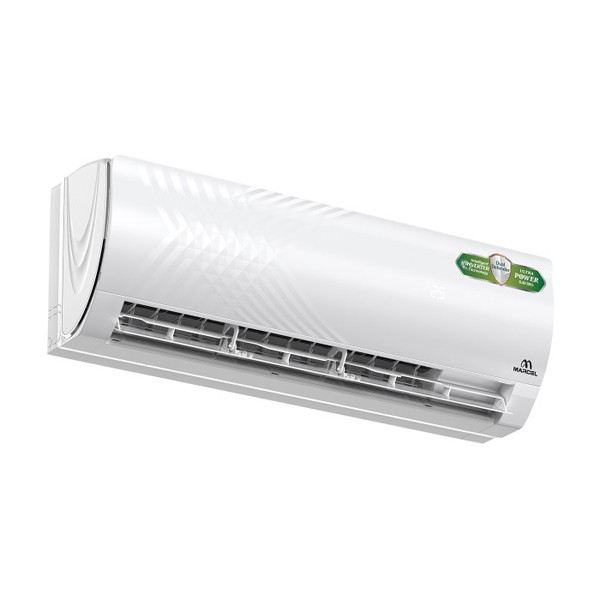

18,000 BTU Split Air Conditioner – Cooling

Basic Features

• Function: Cooling

• BTU/hr: 18,000

• Rated Voltage: 230V ~ 50Hz

• Rated Input Power: 1,870 W

• Rated Current: 8.85 A

• Cooling Capacity: 5,275 W

• EER: 2.82

Cooling Features

• Compressor Type: Rotary (Fixed Speed)

• Refrigerant Type: R-410a

• Refrigerant Amount: 1.15 kg

• Operating Range (Ambient Temperature): 20°C to 43°C

• Evaporator Fin Type: Louvered Fin

• Condenser Type: Copper Tube Condenser

• Condenser Fin Type: Slit Fin

• Maximum Pipe Length: 10 m

Operations

• Turbo Mode (Maximum Cooling): Yes

• ECO Mode (Power Saving): No

• Dry Mode: Yes

• Fan Mode: Yes

• Auto Operation: Yes

• Auto Restart: Yes

• Comfort Cooling: Yes

• Speed Setting: Auto, High, Medium, Low

• Timer: Yes

• Sleep: Yes

Air Deflection

• Auto Up-Down Swing: Yes

• Auto Left-Right Swing: Yes

Remote

• Display Type: LCD

• Operation/Control: Via IR (Infrared Ray)

• Child Lock: Yes

• Temperature Unit Change: Yes (16°C to 31°C)

Dimensions

• Indoor Unit [L×W×H mm]: 947 × 321 × 235

• Indoor Packing [L×W×H mm]: 1025 × 400 × 300

• Outdoor Unit [L×W×H mm]: 844 × 310 × 546

• Outdoor Packing [L×W×H mm]: 900 × 372 × 610

Weights

• Net Weight (Indoor): 12.5 ± 0.5 kg

• Gross Weight (Indoor): 15 ± 0.5 kg

• Net Weight (Outdoor): 35 ± 1 kg

• Gross Weight (Outdoor): 39.5 ± 1 kg
