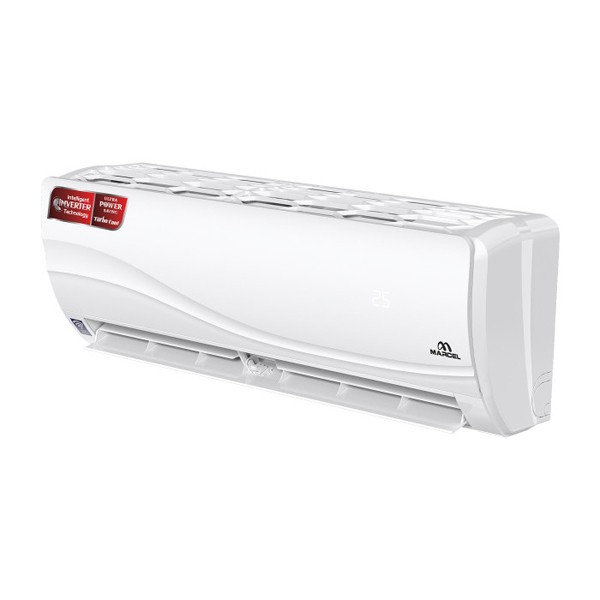

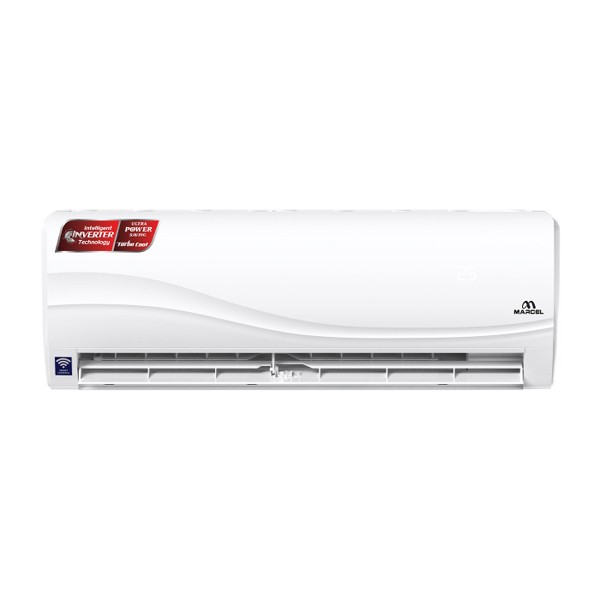

18,000 BTU Split Air Conditioner – Specifications

Basic Features

• Function: Cooling

• Cooling Capacity: 18,000 BTU/hr (5,275 W)

• Rated Voltage: 230V ~ 50Hz

• Rated Input Power: 1,510 W

• Rated Current: 6.6 A

• EER: 3.5

Cooling Features

• Compressor Type: Rotary (Inverter)

• Refrigerant Type: R-410a

• Refrigerant Amount: 1.2 kg

• Operating Range (Ambient Temperature): 20°C to 52°C

• Evaporator Fin Type: Louvered Fin

• Condenser Type: Copper Tube Condenser

• Condenser Fin Type: Slit Fin

• Maximum Pipe Length: 10 m

Operations

• Turbo Mode (Maximum Cooling): Yes

• ECO Mode (Power Saving): Yes

• Dry Mode: Yes

• Fan Mode: Yes

• Auto Operation: Yes

• Auto Restart: Yes

• Comfort Cooling: Yes

• Speed Setting: Auto, High, Medium, Low

• Timer: Yes

• Sleep Mode: Yes

Air Deflection

• Auto Up-Down Swing: Yes

• Auto Left-Right Swing: Yes

Remote Control

• Display Type: LCD

• Operation/Control: Via IR (Infrared Ray)

• Child Lock: Yes

• Temperature Unit Change: Yes (16°C to 31°C)

Dimensions

• Indoor Unit: 947 × 321 × 232 mm

• Indoor Packing: 1025 × 400 × 300 mm

• Outdoor Unit: 865 × 370 × 687 mm

• Outdoor Packing: 935 × 435 × 750 mm

Weights

• Net Weight (Indoor): 12.5 ± 0.5 kg

• Gross Weight (Indoor): 15 ± 0.5 kg

• Net Weight (Outdoor): 37 ± 1 kg

• Gross Weight (Outdoor): 42 ± 1 kg
