60,000 BTU Split Type Air Conditioner – Technical Specifications

Basic Features

• Function: Cooling Only

• Cooling Capacity: 60,000 BTU/hr

• Rated Voltage: 380–420 V ~ 50 Hz

• Rated Input Power: 5,550 W

• Rated Current: 9.2 A

• Cooling Output Capacity: 17,584 W

• Coefficient of Performance (COP): 3.16

Cooling System

• Compressor Type: Scroll Compressor (Fixed Speed)

• Refrigerant Type: R-410A

• Refrigerant Charge: 3.07 kg

• Operating Ambient Temperature Range: 18°C to 43°C

• Condenser Type: Copper Tube Condenser

• Indoor Fin Type: Slit Fin

• Outdoor Fin Type: Slit Fin

• Maximum Pipe Length: 30 m

Operating Functions

• Turbo Mode (Fast Cooling): No

• Turbo Mode (Maximum Cooling): No

• Eco Mode: No

• Auto Operation: Yes

• Dry Mode: Yes

• Fan Mode: Yes

• Fan Speed Settings: Auto / High / Medium / Low

• Auto Restart: Yes

• Comfort Cooling: Yes

• Timer: Yes

• Sleep Mode: Yes

Airflow Control

• Auto Up–Down Swing: Yes

• Auto Left–Right Swing: No

Remote Control

• Display Type: LCD

• Display Backlight: Yes

• Control Method: Infrared (IR)

• Child Lock: Yes

• Temperature Unit Conversion: Yes (°C ↔ °F)

Dimensions (L × W × H)

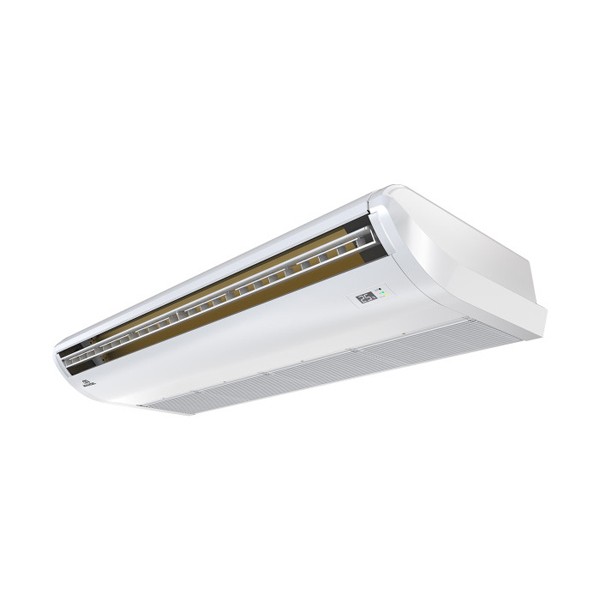

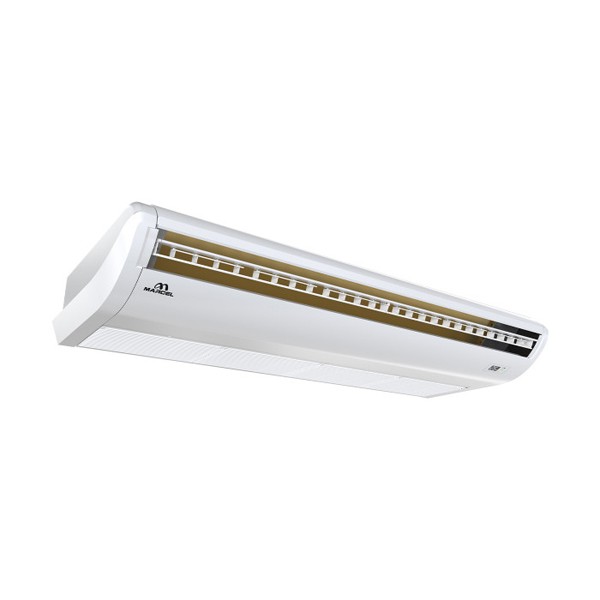

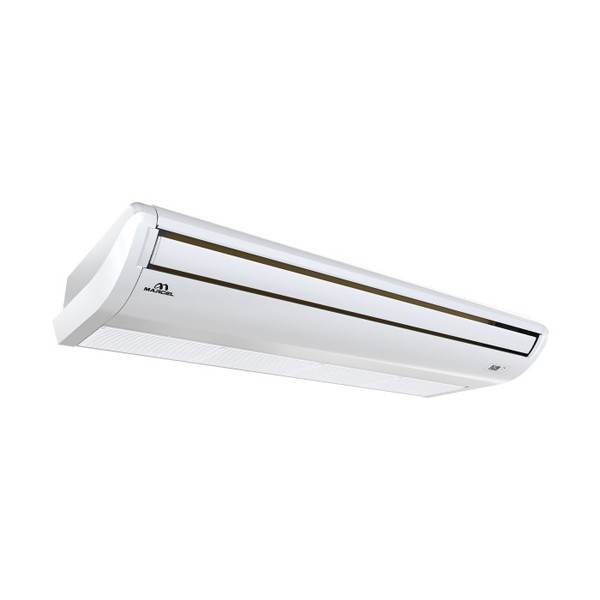

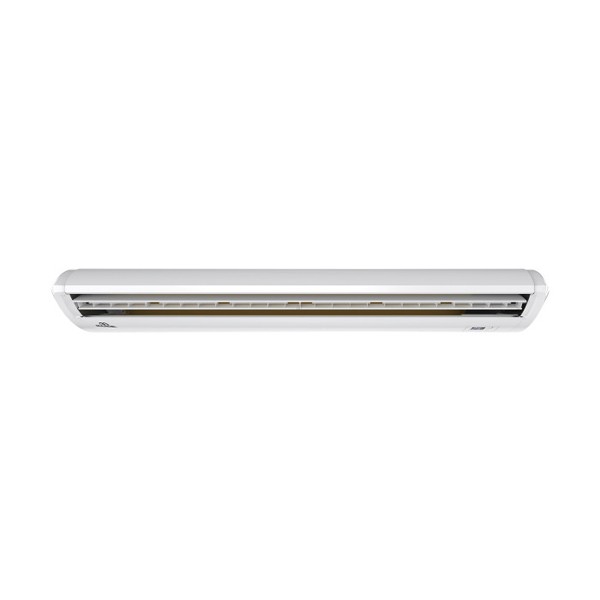

Indoor Unit:

• Unit Size: 1695 × 680 × 242 mm

• Packing Size: 1760 × 765 × 311 mm

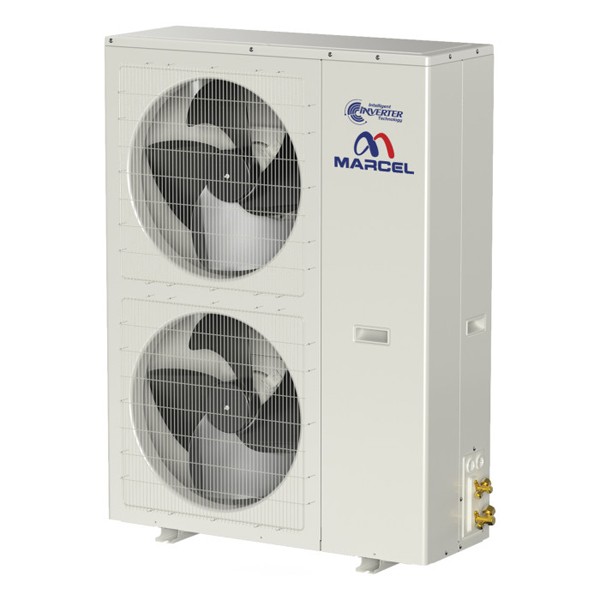

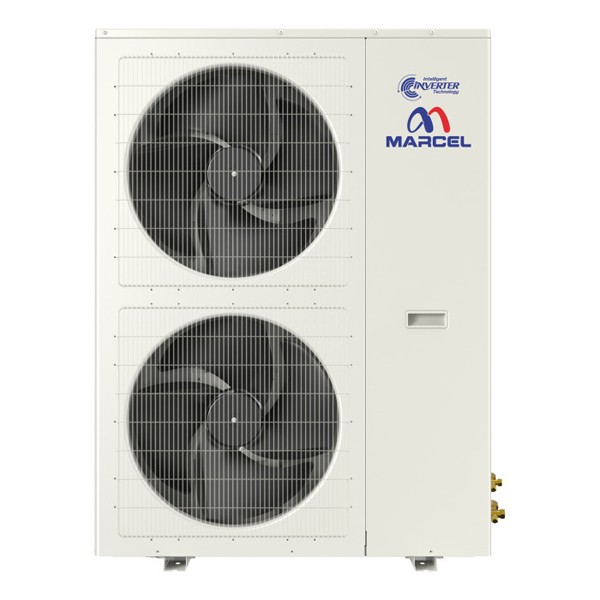

Outdoor Unit:

• Unit Size: 917 × 330 × 1260 mm

• Packing Size: 1030 × 400 × 1290 mm

Indoor Front Panel:

• Not Applicable

Weight

Indoor Unit:

• Net Weight: 42 ±1 kg

• Gross Weight: 49 ±1 kg

Outdoor Unit:

• Net Weight: 103 ±1 kg

• Gross Weight: 115 ±1 kg

Outdoor Front Panel:

• Not Applicable
