48,000 BTU Split Type Air Conditioner – Technical Specifications

Basic Features

• Function: Cooling Only

• Cooling Capacity: 48,000 BTU/hr

• Rated Voltage: 380–420 V ~ 50 Hz

• Rated Input Power: 5,036 W

• Rated Current: 9.74 A

• Cooling Output Capacity: 14,068 W

• Coefficient of Performance (COP): 2.79

Cooling System

• Compressor Type: Scroll Compressor (Fixed Speed)

• Refrigerant Type: R-410A

• Refrigerant Charge: 2.18 kg

• Operating Ambient Temperature Range: 18°C to 43°C

• Condenser Type: Copper Tube Condenser

• Indoor Fin Type: Slit Fin

• Outdoor Fin Type: Slit Fin

• Maximum Pipe Length: 30 m

Operating Functions

• Turbo Mode (Fast Cooling): No

• Turbo Mode (Maximum Cooling): No

• Eco Mode: No

• Auto Operation: Yes

• Dry Mode: Yes

• Fan Mode: Yes

• Fan Speed Settings: Auto / High / Medium / Low

• Auto Restart: Yes

• Comfort Cooling: Yes

• Timer: Yes

• Sleep Mode: Yes

Airflow Control

• Auto Up–Down Swing: Yes

• Auto Left–Right Swing: No

Remote Control

• Display Type: LCD

• Display Backlight: Yes

• Control Method: Infrared (IR)

• Child Lock: No

• Temperature Unit Conversion: Yes (°C ↔ °F)

Dimensions (L × W × H)

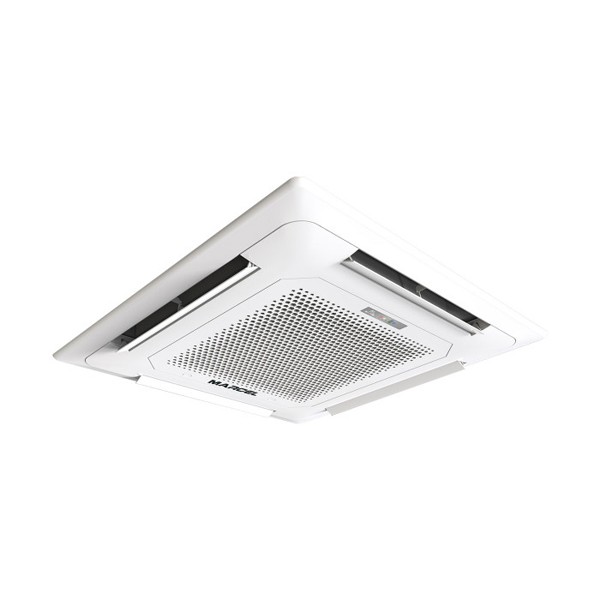

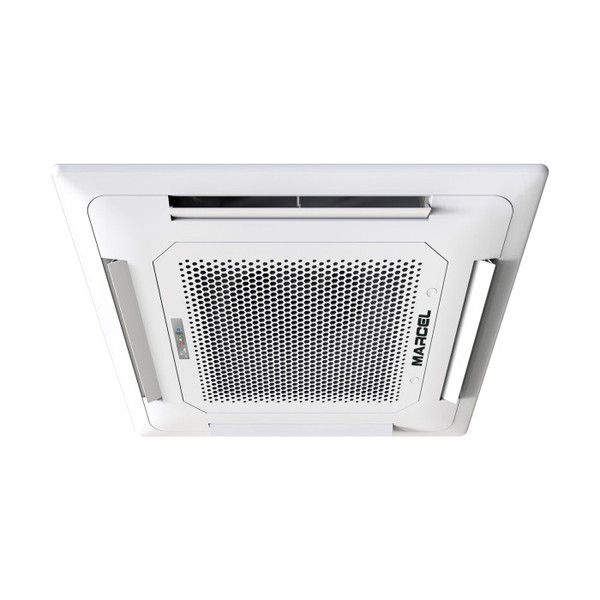

Indoor Unit:

• Unit Size: 840 × 840 × 310 mm

• Packing Size: 890 × 890 × 345 mm

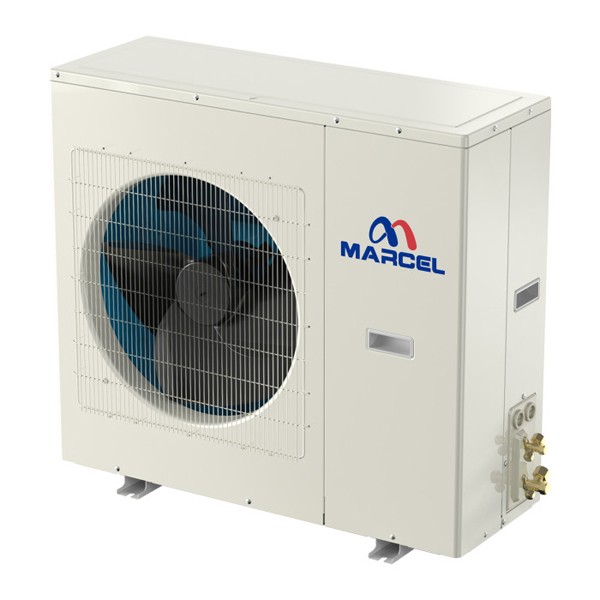

Outdoor Unit:

• Unit Size: 917 × 330 × 960 mm

• Packing Size: 1030 × 400 × 1000 mm

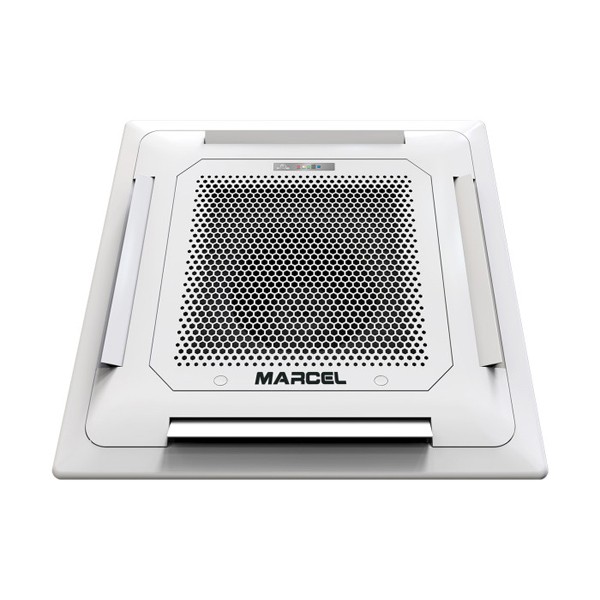

Indoor Front Panel:

• Unit Size: 950 × 950 × 45 mm

Weight

Indoor Unit:

• Net Weight: 35 ±1 kg

• Gross Weight: 40 ±1 kg

Outdoor Unit:

• Net Weight: 90.7 ±1 kg

• Gross Weight: 100.28 ±1 kg

Indoor Front Panel:

• Net Weight: 5.3 ±0.25 kg

• Gross Weight: 9.11 ±0.25 kg
