30,000 BTU Split Type Air Conditioner – Technical Specifications

Basic Features

• Function: Cooling Only

• Cooling Capacity: 30,000 BTU/hr

• Rated Voltage: 380–420 V ~ 50 Hz

• Rated Input Power: 3,290 W

• Rated Current: 5.75 A

• Cooling Output Capacity: 8,792 W

• Coefficient of Performance (COP): 2.67

Cooling System

• Compressor Type: Rotary Compressor (Fixed Speed)

• Refrigerant Type: R-410A

• Refrigerant Charge: 1.75 kg

• Operating Ambient Temperature Range: 18°C to 43°C

• Condenser Type: Copper Tube Condenser

• Indoor Fin Type: Slit Fin

• Outdoor Fin Type: Slit Fin

• Maximum Pipe Length: 30 m

Operating Functions

• Turbo Mode (Fast Cooling): No

• Turbo Mode (Maximum Cooling): No

• Eco Mode: No

• Auto Operation: Yes

• Dry Mode: Yes

• Fan Mode: Yes

• Fan Speed Settings: Auto / High / Medium / Low

• Auto Restart: Yes

• Comfort Cooling: Yes

• Timer: Yes

• Sleep Mode: Yes

Airflow & Swing Control

• Auto Up–Down Swing: Yes

• Auto Left–Right Swing: No

Remote Control

• Display Type: LED

• Backlight: Yes

• Control Method: Infrared (IR)

• Child Lock: No

• Temperature Unit Conversion: Yes (°C ↔ °F)

Dimensions (L × W × H)

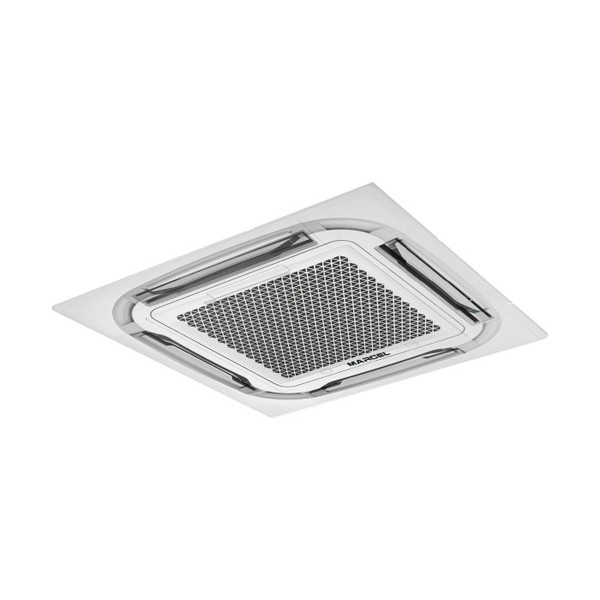

Indoor Unit:

• Unit: 860 × 860 × 245 mm

• Packing: 915 × 915 × 290 mm

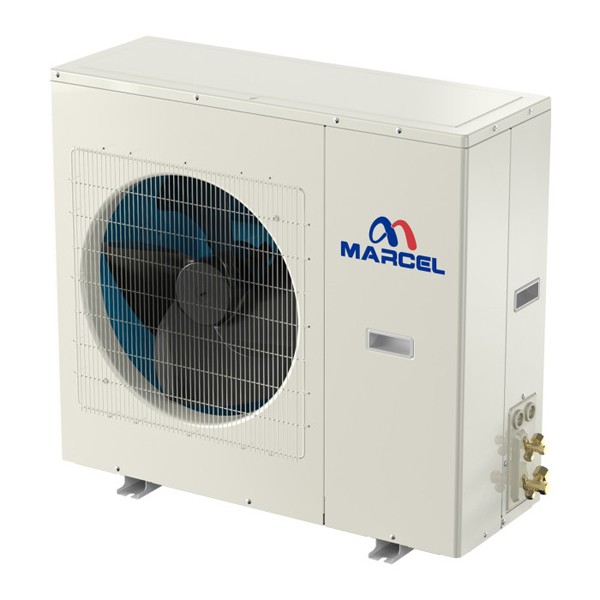

Outdoor Unit:

• Unit: 917 × 330 × 840 mm

• Packing: 1030 × 400 × 1000 mm

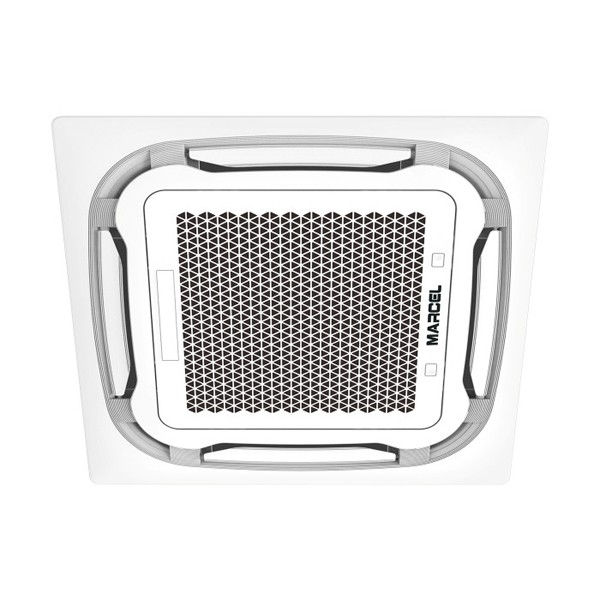

Indoor Front Panel:

• Unit: 955 × 955 × 50 mm

Weight

Indoor Unit:

• Net: 28.5 ±1 kg

• Gross: 32.5 ±1 kg

Outdoor Unit:

• Net: 70 ±1 kg

• Gross: 80 ±1 kg

Indoor Front Panel:

• Net: 6.0 ±0.25 kg

• Gross: 8.0 ±0.25 kg
