Cooling Features:

Type:                           Direct Cool

Performance:

Climate Type (SN, N, ST, T):                                                              N~ST

Rated Operating Voltage and Frequency:                                          220-240V~ and 50Hz

Compressor Input Power (Watt):

V02.01- 118

V03.01- 118

V0302-118

V0401-33.78~126.46

Compressor Type:

V02.01- RSCR

V03.01- RSCR

V0302-RSCR

V0401-BLDC

Cooling Effect

Freezer Cabinet Less than -18℃

Refrigerator Cabinet 0℃ to +5℃

General features:

Temperature Control (Electronic/ Mechanical):                                  Mechanical

Defrosting (Automatic/ Manual):                                                         Manual

Reversible Door:                                                                                 No

Handle (Recessed/Grip):                                                                    Recessed/Grip

Lock:                                                                                                   Yes

Refrigerant:                                                                                         V 0301- R600a

Condenser:

V 0201-Copper

V 0301-MS

V 0302-MS

V 0401-MS

Capillary:                                                                                               Copper

Polyurethane foam blowing agent.

Cyclopentene

[Eco-friendly (100% CFC &

HCFC Free) Green Technology]

Operating voltage

V 0301/V 0302: Wide Voltage Design (150V-260V)

N.B.: If out of voltage range(150V-260V), then suggested voltage stabilizer capacity is 2100VA.

V 0401: Wide Voltage Design (75V-264V)

N.B.: If out of voltage range(75V-264V) then suggested voltage stabilizer capacity is 2100VA.

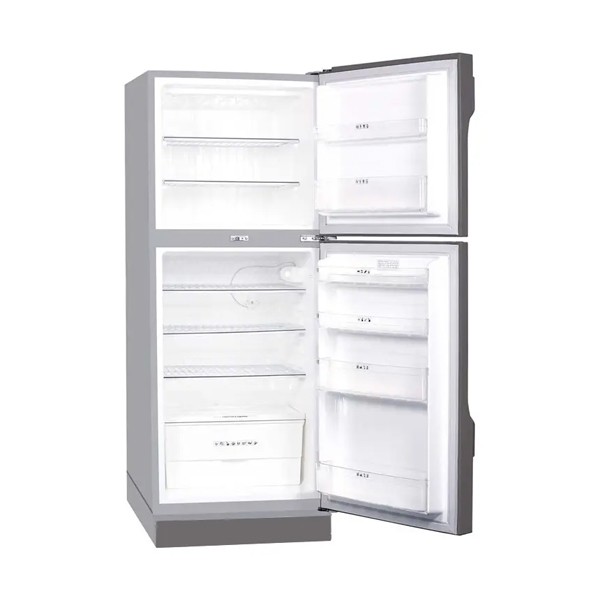

Refrigerator Compartment:

Shelf (Material/ No.)

Wire/3

Door Basket

4

Interior Lamp

Yes

Vegetable Crisper Cover

Yes (Glass/ plastic)

Egg Tray or Pocket

Yes/2

Can Storage Dispenser

No

Deodorizer

No

Freezer Compartment:

Shelf (Material/No.)

Wire/2

Drawer

No

Door Basket

2

Interior Lamp

No

Dimensions (Net):

Width/mm

645

Depth/mm

650

Height/mm

1605

Packing:

Width/mm

710

Depth/mm

710

Height/mm

1660

Weight/Kg - Net/Packing

61/ 69 ± 2

Loading Capacity- 40HQ/ 40Ft/ 20Ft

69/ 48/ 24

Star rating (BDS 1850:2012)

5
