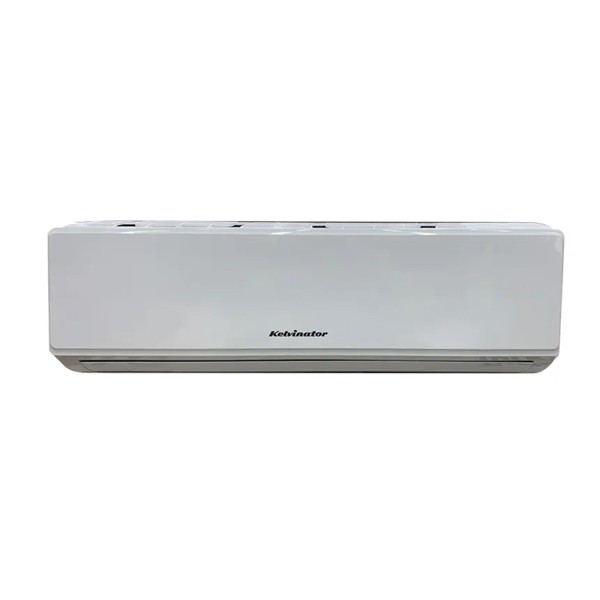

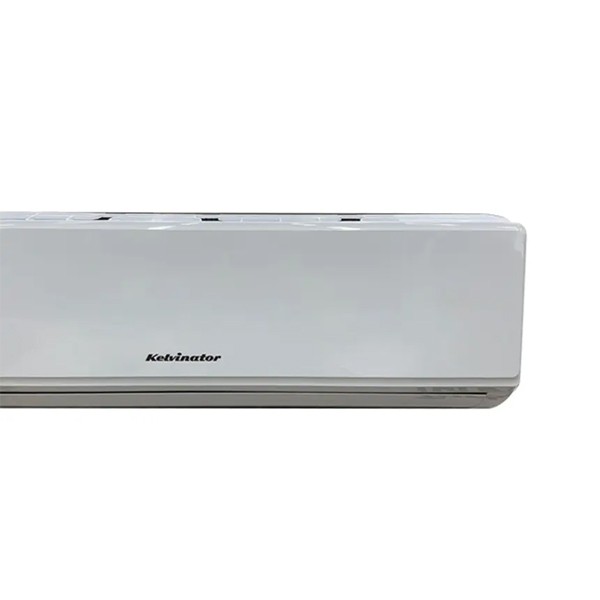

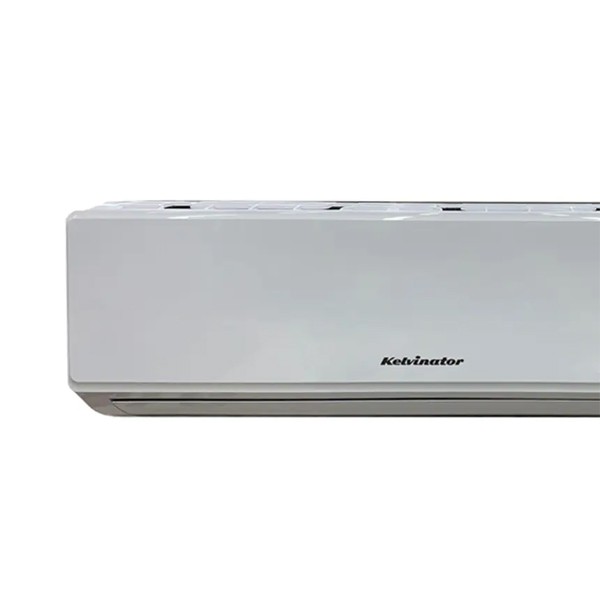

Split Type Air Conditioner – Model: KSV-24NVBD

Cooling Capacity: 24,000 BTU

Electrical Specifications:

• Rated Voltage: 220–240 V

• Rated Frequency: 50 Hz

• Rated Power Input: 3,000 W

• Operating Power Input: 2,400 W

• Current Input: 10.90 A

• Maximum Current Input: 13.90 A

Design Pressure:

• Suction Pressure: 1.15 MPa

• Discharge Pressure: 4.15 MPa

Maximum Operating Pressure:

• Low Side: 3.8 MPa

• High Side: 3.8 MPa

Noise Levels:

• Indoor Unit: 49 dB(A)

• Outdoor Unit: 59 dB(A)

Weight:

• Indoor Unit: 11 Kg

• Outdoor Unit: 35 Kg

Air Circulation (Indoor): 1,050 m³/h

Compressor:

• Locked Rotor Current: 45 A

• Refrigerant Type & Quantity: R410A, 1.4 Kg

Protection & Safety:

• Outdoor Unit Waterproof Level: IPX4

• Shockproof Protection Class: Class I

Climate Application Type: T1
