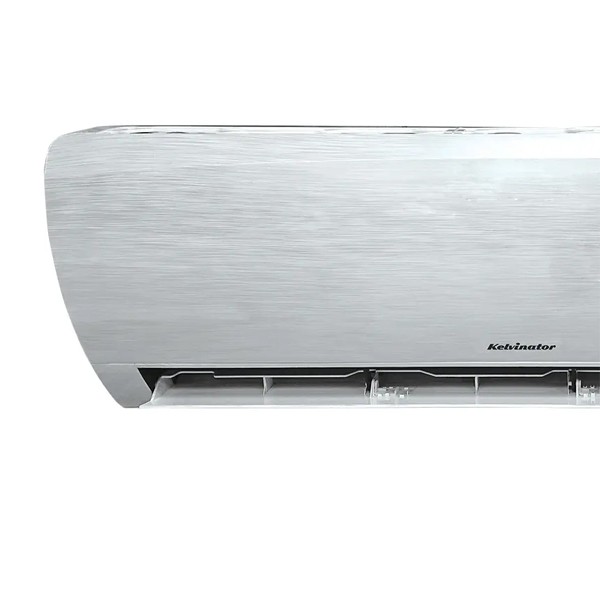

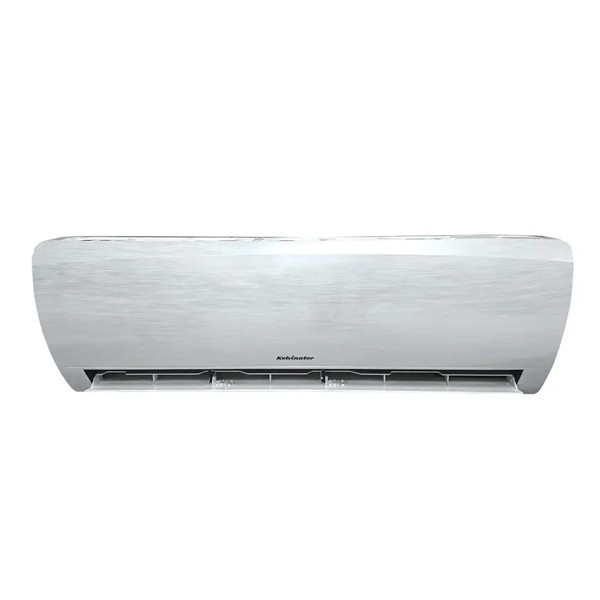

Split Type Air Conditioner – KSV-18NVBD

Capacity & Power:

• Cooling Capacity: 18,000 BTU

• Rated Power Input: 2,500 W

• Operating Power Input: 1,600 W

• Current Input: 8.10 A

• Maximum Current Input: 11.60 A

Design & Pressure:

• Suction Pressure: 1.15 MPa

• Discharge Pressure: 4.15 MPa

• Maximum Operating Pressure (Low/High): 3.8 MPa / 3.8 MPa

Noise Levels:

• Indoor Unit: 45 dB(A)

• Outdoor Unit: 55 dB(A)

Weight:

• Indoor Unit: 9 kg

• Outdoor Unit: 28 kg

Electrical Specifications:

• Rated Voltage: 220–240 V

• Rated Frequency: 50 Hz

• Compressor Locked Current: 38 A

Airflow & Refrigerant:

• Indoor Air Circulation: 700 m³/h

• Refrigerant Type: R410A

• Refrigerant Filling Quantity: 1 kg

Protection & Durability:

• Outdoor Unit Waterproof Level: IPX4

• Shockproof Protection: Class I

Climate Application: T1 (Suitable for tropical climates)
