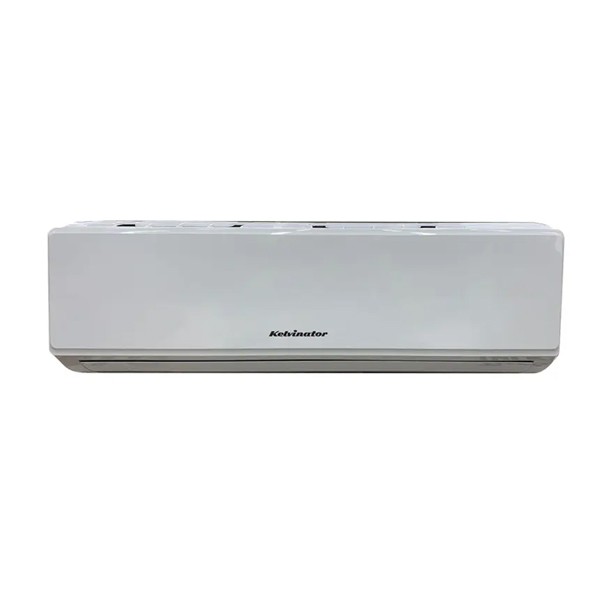

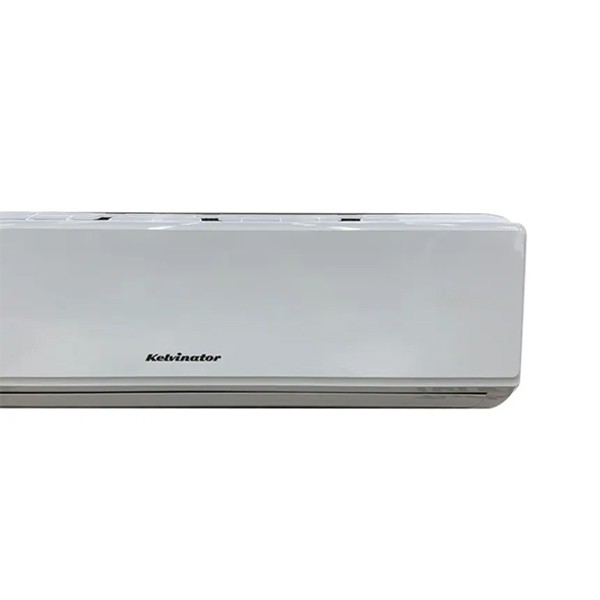

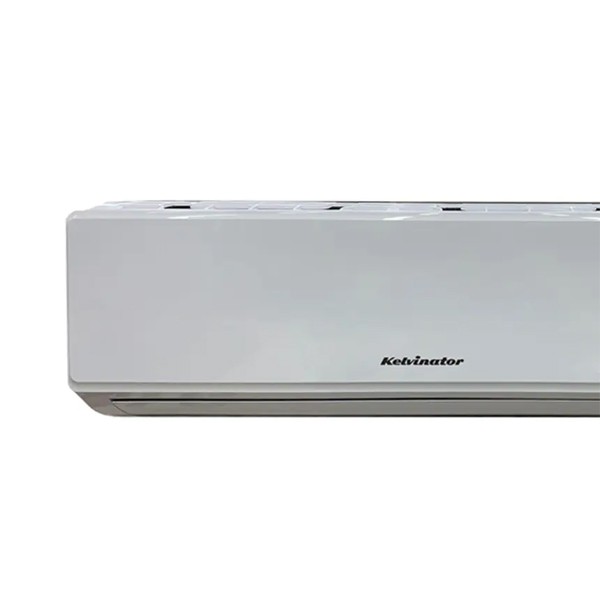

Kelvinator 1 Ton Split Type Air Conditioner Specifications

Model: KSV-12NVBD

Capacity & Electrical Performance

• Cooling Capacity: 12,000 BTU (1 Ton)

• Operating Power Input: 1,220 W

• Rated Power Input: 1,750 W

• Current Input: 5.72 A

• Maximum Current Input: 7.90 A

Pressure Specifications

• Suction Pressure: 1.15 MPa

• Discharge Pressure: 4.15 MPa

• Maximum Operating Pressure:

  • Low: 3.8 MPa

  • High: 3.8 MPa

Noise Levels

• Indoor Unit Noise Level: 40 dB(A)

• Outdoor Unit Noise Level: 52 dB(A)

Weight

• Indoor Unit: 7 kg

• Outdoor Unit: 22 kg

Electrical Specifications

• Rated Voltage: 220–240 V

• Rated Frequency: 50 Hz

• Compressor Locked Current: 30 A

Airflow & Refrigerant

• Indoor Air Circulation: 550 m³/h

• Refrigerant Type: R410A

• Refrigerant Charge: 0.89 kg

Protection & Durability

• Outdoor Unit Waterproof Rating: IPX4

• Shockproof Protection Class: Class I

Climate Application

• Climate Type: T1 (Designed for tropical climate conditions)
