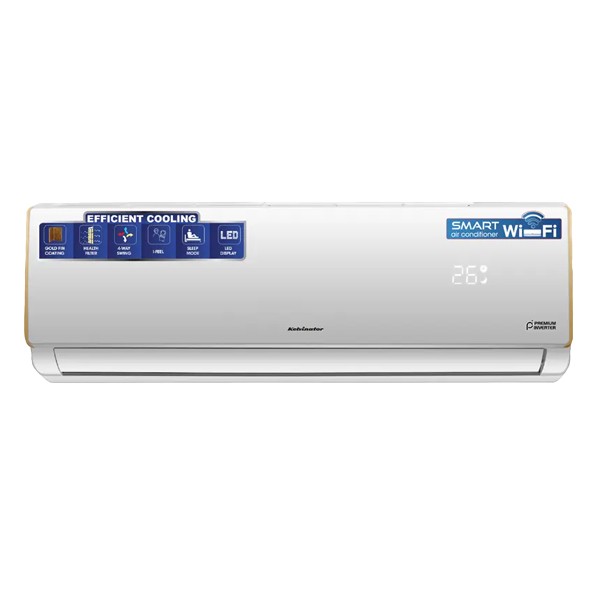

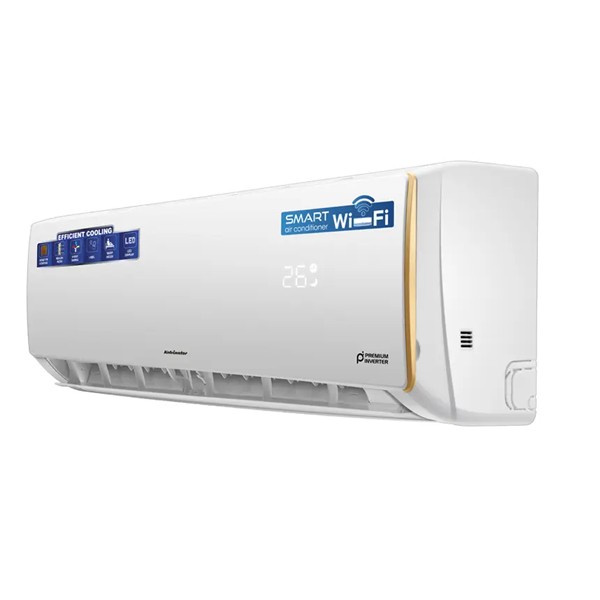

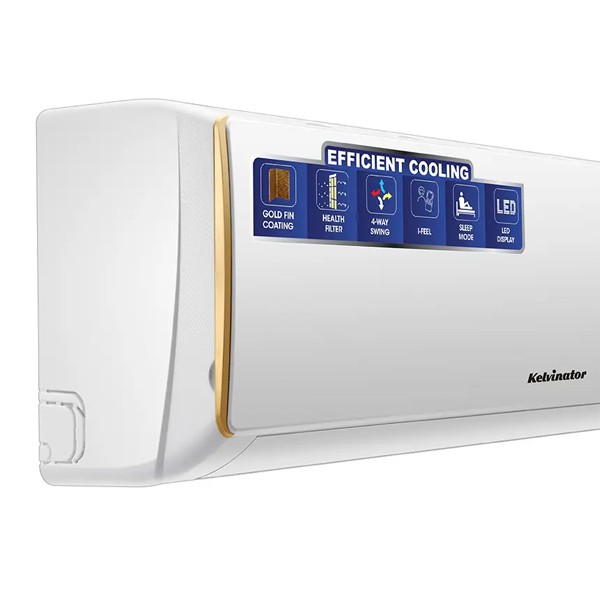

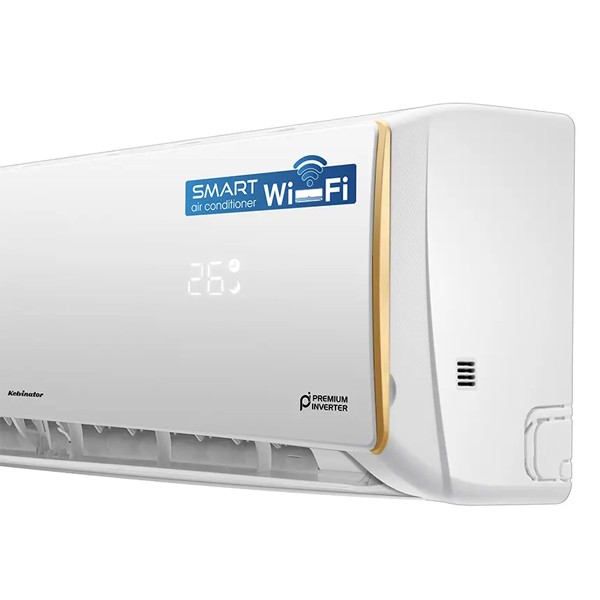

Model Name                                                   KSV-12TPINV-SW

Type                                                                Cooling only

Control type                                                    Remote

Power supply (Ph-V-Hz)                                 1Ph-220-240V~50Hz

Voltage Range(V)                                           198~242

Cooling:

Capacity (Btu/h)                                              12000(2730~12500)

Capacity(W)                                                    3200(800~3665)

Rated power Input (W)                                   994(250~1450)

Rated current (A)                                            4.6(1.2~7.5)

EER(W/W)                                                      3.22

Max power Input (W)                                      1450

Max current (A)                                               7.5

Indoor coil:

a. Number of rows                                          2

b. Tube pitch(a)x row pitch(b) mm                  21×12.7

c. Fin spacing(mm)                                         1.5

e. Tube outside dia and type(mm)                  Φ7, inner groove tube

f. Coil length x height x width(mm)                 /

g. Number of circuits                                       1 in 2 out

Outdoor coil:

a. Number of rows                                          1

b. Tube pitch(a)x row pitch(b) mm                  19.5×11.6

c. Fin spacing(mm)                                         1.2

e. Tube outside dia and type(mm)                  Φ5, innergroove tube

f. Coil length x height x width(mm)                 /

g. Number of circuits                                       1 in 1 out

Indoor unit:

Dimension(W*D*H) (mm)                               776×250×202

Packing  (W*D*H)(mm)                                   840×315×260

Net/Gross weight (Kg)                                    8/10

Outdoor unit:

Dimension(W*D*H) (mm)                               787×290×498

Packing (W*D*H)(mm)                                    818×325×520

Net/Gross weight (Kg)                                    22/26

Refrigerant piping:

Liquid side/ Gas side mm(inch)                      φ6(1/4")/φ9.52(3/8")

Max. refrigerant pipe length(m)                      15

Max. difference in level(m)                             5

Pressure:

High (DP)MPa                                                 4.5

Low (SP)MPa                                                  1.9

Refrigerant                                                      R410A/0.53kg

Ambient temperature (℃)                                       -15~50

Suitable area(m2)                                           15~23

Connecting Wiring                                          4×1.0mm²×5.8m

Power supply cord                                          AWG16

Qty 40'HQ                                                       310
