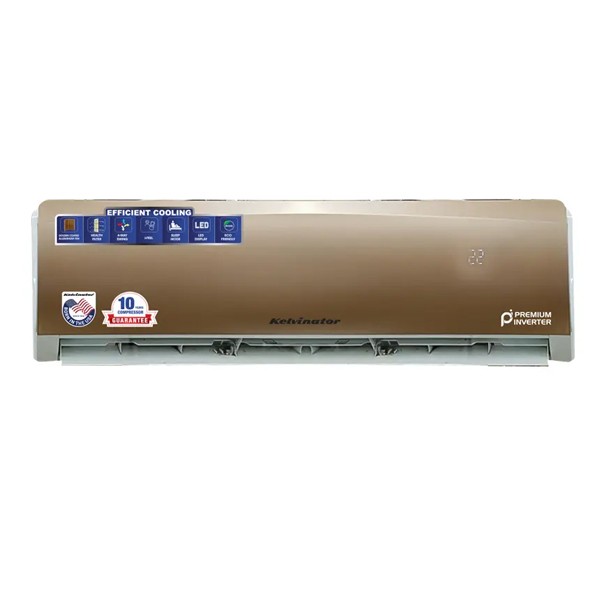

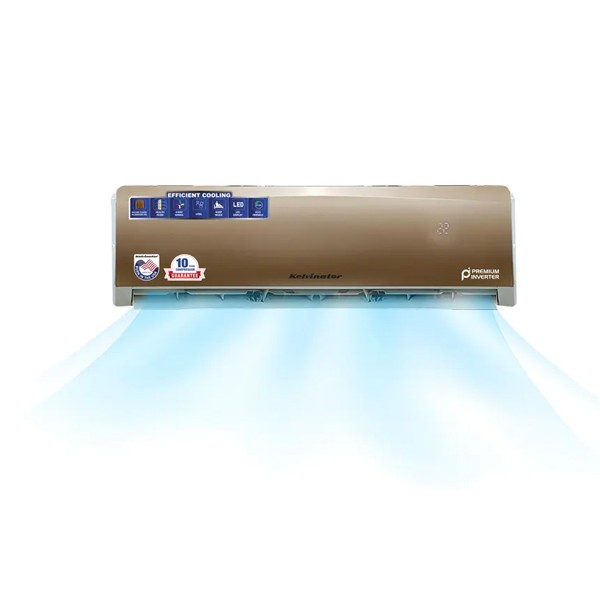

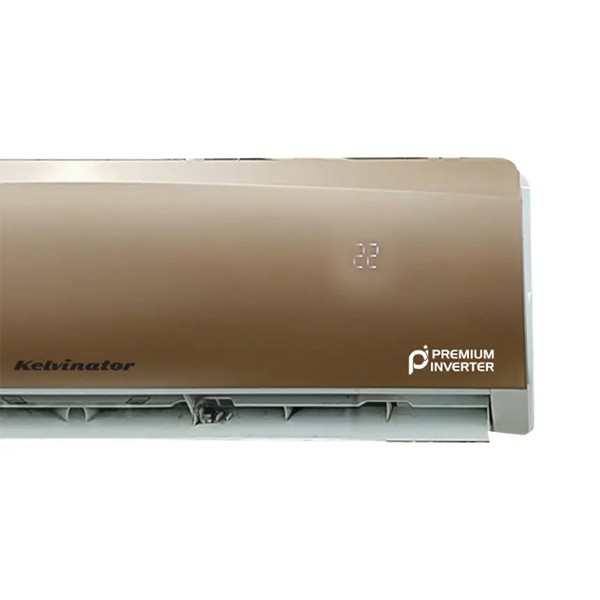

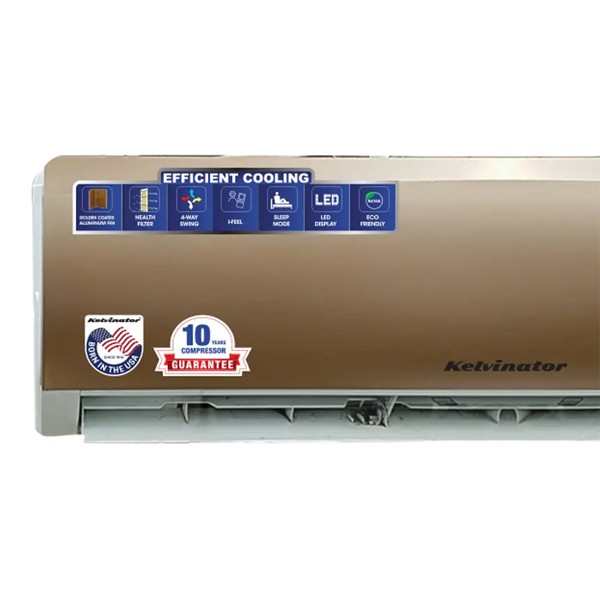

PARAMETERS:                                                          KSV-12BDINV GOLDEN

About Model:

Type of Ac                                                                   Split, Inverter, Cooling only, Power supply

Rated Voltage & phase                                               230V, Single

Rated frequency                                                         50 Hz

Cooling:

Withstanding Voltage & Frequency                            130V-280V-50HZ

Withstanding Operating conditions: ODU                  20-46°C

Cooling Area                                                               90-120 sq feet

Capacity (Rated)                                                         3517 Watt

Power (Rated)                                                             1120 Watt

EER(Rated)                                                                 3.14 W/W

Cooling Input Current                                                 4.86 A

Max. Input Power                                                        1380 Watt

Max. Input Current                                                      7 A

General:

Indoor side air flow (Rated)                                        570 m3/h

Indoor side noise level (Rated)                                   43.5 dB(A)

Dimensions (L*W*H)                                                   832 x 292 x 210 mm

Packing (L*W*H)                                                         910 x 365 x 285 mm

Weight: Net & Gross                                                   10.7±0.5 & 12.85±0.5 Kg

Motor:

Motor Type: Single Phase Induction                           Wolong, YYW25-4-5201L

Motors Mechanical output Wattage                            25 W

Capacitor                                                                     1.5 uF

Indoor Fan speed (r/min)                                            1200

Thermal protector                                                       Yes
